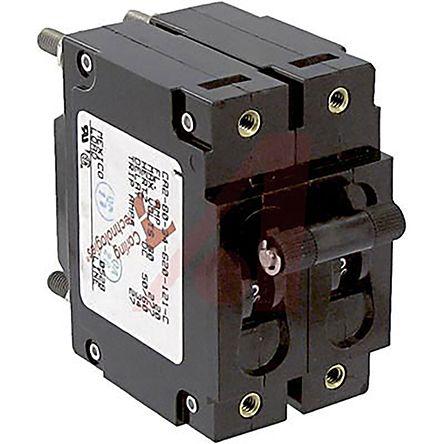

Carling Technologies CB2B0146503BAC Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker is a compact and robust solution designed for high amperage and voltage applications. Available in configurations from one to six poles, these breakers are rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC. The unique arc chute design allows for higher interrupting capacities of up to 10,000 amps, making it suitable for a wide range of industrial and commercial uses. Typical applications include marine, datacom/telecom, renewable energy, generators & welders, military, industrial automation, commercial food, and medical equipment.
Carling Technologies CB2B0146503BAC Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage AC: 480 WYE/277 VAC
- Maximum Voltage DC: 80 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Standard Voltage Coils DC: 6V, 12V
- Standard Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC, 1/4 HP, 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute between all electrically isolated terminals
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers will trip on overload, even when actuator is forcibly held in the ON position
- Weight: Approx.112 grams/pole
Buy the CB2-B0-14-650-3BA-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CB2-B0-14-650-3BA-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CB2B0146503BAC?
You can click on the BUY or RFQ button to purchase CB2B0146503BAC from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CB2B0146503BAC?
You can download the CB2B0146503BAC datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CB2B0146503BAC?
Carling Technologies
