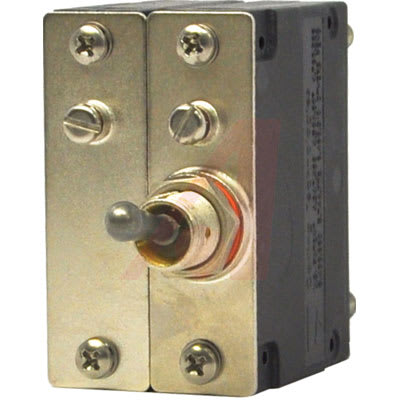

Carling Technologies CM2B014615301C Hydraulic Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic/magnetic circuit breakers are engineered for demanding applications needing high amperage and voltage capabilities in a compact design. These breakers offer a unique arc chute design, allowing for interrupting capacities up to 10,000 amps. Constructed with a thermoset glass-filled polyester half shell, they provide enhanced mechanical and electrical strength. Available with multiple terminal options (American Standard/Metric threaded stud or saddle clamp screw terminals) and actuator styles (metal toggle, parallel pole, rocker, or Visi-rocker), the C-Series provides versatility for diverse industrial needs. Agency certifications include UL, CSA, TUV, and VDE, ensuring compliance with industry standards.
Carling Technologies CM2B014615301C Hydraulic Magnetic Circuit Breaker Specifications:
- Voltage: Up to 480VAC or 150VDC
- Current: 0.02-100amps
- Interrupting Capacity: Up to 10,000 amps
- Poles: 1-6
- Certifications: UL Recognized, UL Listed, CSA Accepted, TUV Certified, VDE Certified
- Actuator Styles: Metal Toggle, Parallel Pole, Rocker, Visi-rocker
- Terminal Options: American Standard/Metric Threaded Stud, Saddle Clamp Screw
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: 1960 V 50/60 Hz
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC Aux. Switch 1.0A, 65 VDC
Buy the CM2-B0-14-615-301-C CARLING TECHNOLOGIES Hydraulic Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CM2-B0-14-615-301-C circuit breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CM2B014615301C?
You can click on the BUY or RFQ button to purchase CM2B014615301C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CM2B014615301C?
You can download the CM2B014615301C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CM2B014615301C?
Carling Technologies
