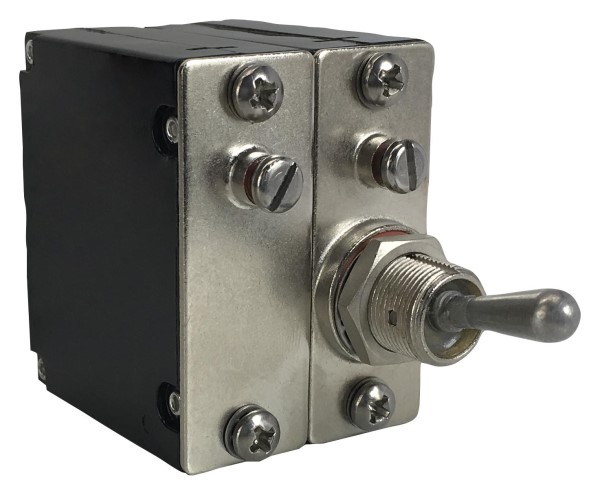

Carling Technologies CM2B046650301C Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker offers a compact and robust solution for high amperage and voltage applications. Designed with a unique arc chute, this breaker provides high interrupting capacities up to 10,000 amps. Available in configurations from one to six poles and rated up to 100 amps, the C-Series is suitable for a wide range of industrial uses, including marine, datacom/telecom, renewable energy, military, commercial food, and medical equipment. Its robust design and compliance with industry standards ensure reliable performance in demanding environments.
Carling Technologies CM2B046650301C Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage AC: 480 WYE/277 VAC, 50/60 Hz
- Voltage DC: 125 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Voltage Coils DC: 6V, 12V
- Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC, 1/4 HP, 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute between all electrically isolated terminals
- Spacing: 8mm spacing and 3750V 50/60 Hz dielectric requirements from hazardous voltage to operator accessible surfaces, between adjacent poles and from main circuits to auxiliary circuits
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers will trip on overload, even when actuator is forcibly held in the ON position
- Physical Number of Poles: 1-6 poles ≤ 50A; 1-4 poles @ 51-70A; 1-2 poles 71-100A
- Weight: Approx.112 grams/pole ( 3.95 oz)
- Operating Temperature: -40° C to +85° C
- Standards: MIL-PRF-55629 & MIL-STD-202
- Current Tolerance: {'100-250 Amps': '35%'}
Buy the CM2-B0-46-650-301-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CM2-B0-46-650-301-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CM2B046650301C?
You can click on the BUY or RFQ button to purchase CM2B046650301C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CM2B046650301C?
You can download the CM2B046650301C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CM2B046650301C?
Carling Technologies
