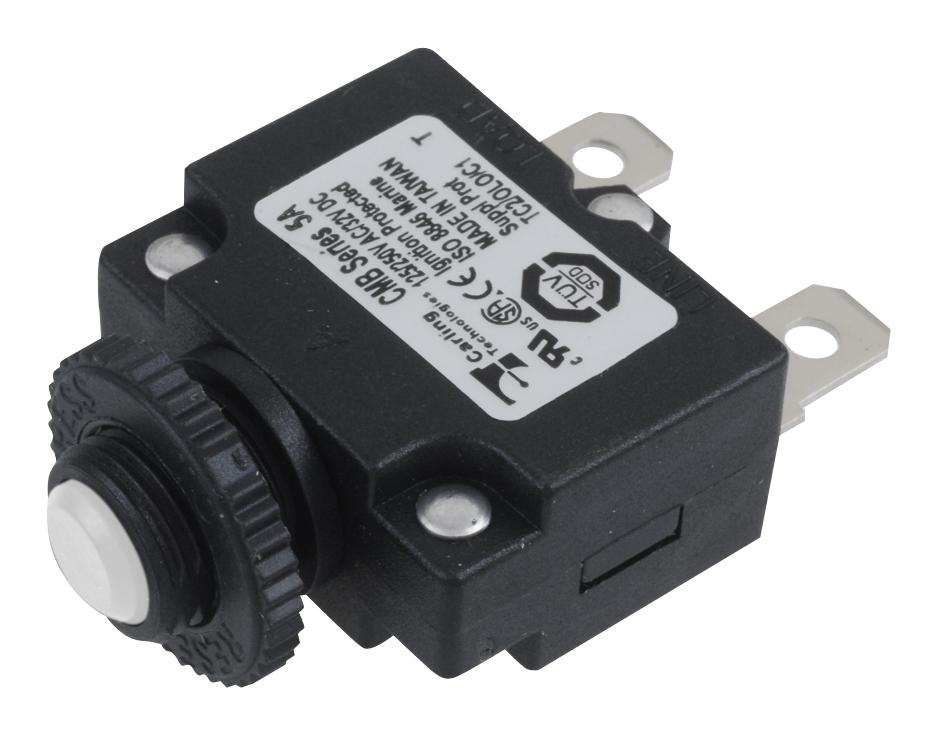

Carling Technologies CMB15327GNNWA Thermal Circuit Protector
The CMB-Series thermal circuit protectors are compact, single-pole, push-to-reset devices designed to safeguard various electrical equipment. These high-reliability circuit breakers operate at ratings from 3A to 20A, with voltage capacities of 125-250VAC and 32VDC, offering excellent protection with a 2500 VAC/1 minute dielectric withstand and 2500A interrupting capacity at 32VDC. Their simple, precision design ensures resistance against shock and vibration, making them ideal for household appliances, marine, transportation, medical equipment, and power supplies, with UL, cUL, CSA, TUV, and CE certifications.
Carling Technologies CMB15327GNNWA Thermal Circuit Protector Specifications:
- Rated Current: 3A to 20A
- Voltage Ratings: 125-250VAC, 32VDC
- Dielectric Withstand: 2500 VAC for 1 minute
- Interrupting Capacity: 2500A @ 32VDC
- Max Operating Temperature: 60°C
- Insulation Resistance: 100M ohms
- Voltage Drop: Less than 0.25 V
- Certifications: UL, cUL, CSA, TUV, CE, UL1500/ISO8846
- Physical Design: Compact, single-pole, push-to-reset
- Application: Household, marine, transportation, medical equipment, power supplies
- Construction: Precision design with few moving parts, shock and vibration resistant
Buy the Carling CMB15327GNNWA – Reliable Thermal Circuit Breaker for Industrial Applications
Secure your equipment with the Carling thermal circuit protector that features a push-to-reset mechanism, high current ratings from 3A to 20A, and certifications including UL and CSA. Its compact and durable design ensures reliable operation in challenging environments like marine, industrial, and medical settings. Easy to install and maintain, this circuit breaker provides effective protection against overloads and short circuits. Purchase online today and benefit from fast shipping, trusted quality, and technical support to safeguard your devices efficiently.
Buy Carling CMB15327GNNWA now and experience unmatched reliability and performance with its high current ratings and versatile applications.
Frequently Asked Questions
Where can I buy Carling Technologies CMB15327GNNWA?
You can click on the BUY or RFQ button to purchase CMB15327GNNWA from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CMB15327GNNWA?
You can download the CMB15327GNNWA datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CMB15327GNNWA?
Carling Technologies
