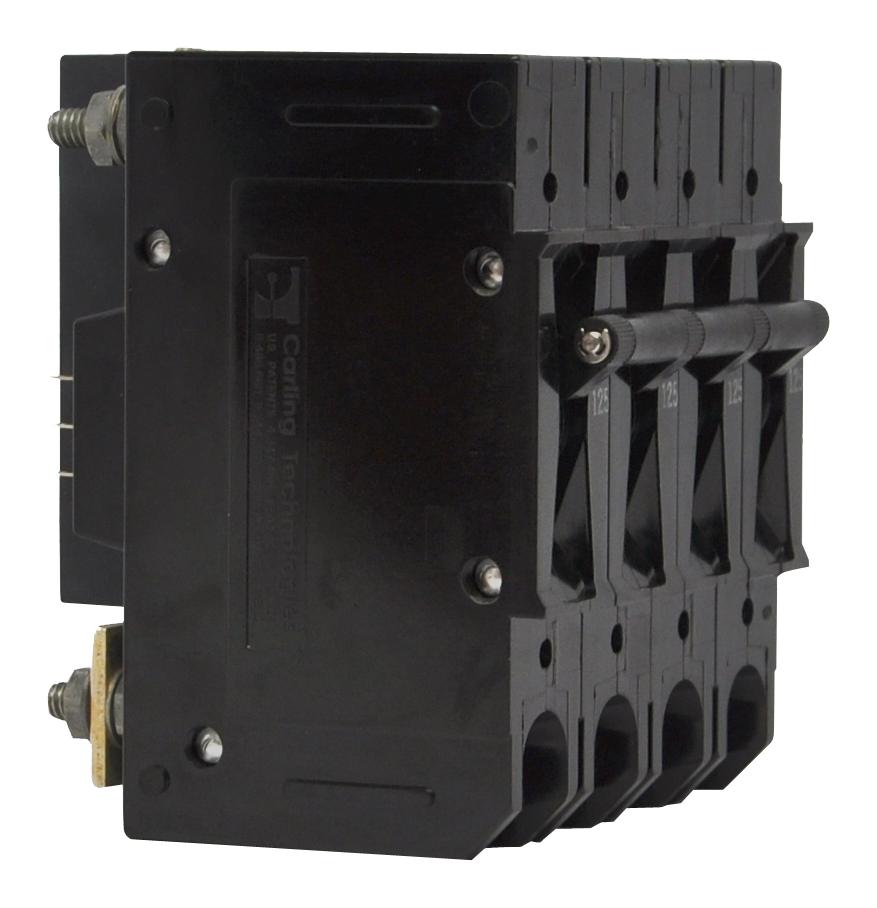

Carling Technologies EA4B02461032EDF Circuit Protector
The E-Series hydraulic-magnetic circuit breaker offers reliable branch circuit protection with UL and CSA certifications. Suitable for high current and voltage applications, it features front and back mounting, screw and stud terminals, and heavy-duty wire connectors. Available with handle actuators, configurable from .1-125 amps up to 600VAC or 125VDC, it includes options like time delays, pole configurations from 1 to 6, and a Power Selector device. Designed for industrial, renewable energy, military, and generator applications, it ensures safety, durability, and versatile operation in demanding environments.
Carling Technologies EA4B02461032EDF Circuit Protector Specifications:
- Current Ratings: 0.1-125 Amps, configurable with options for time delays and poles from 1 to 6
- Maximum Voltage: 600VAC 50/60 Hz, 125VDC
- Terminal Types: Screw, Stud, box wire connectors accepting copper or aluminum wire (#14-0 AWG)
- Mounting: Front and back, mounted on vertical surfaces with minimum spacing of 3 inches (A3"), designed per MIL standards
- Physical Dimensions: Handle length 2.750 inches (69.85mm), overall height approximately 4.75 inches (120.65mm), weight about 252 grams (9 ounces) per pole
- Environmental: Operating temperature -40°C to +85°C, shock resistance 100 Gs, vibration resistance, moisture, and salt spray resistant per MIL-STD-202G
- Electrical Ratings: 600VAC, 125VDC; auxiliary switch ratings up to 10.1A at 250VAC, 0.5A at 65VDC
- Standards & Certifications: UL 1077, UL 489, CSA Certified, VDE Approved for select configurations
- Construction: Heavy-duty box wire connectors, pressure plates for standard wire, and available with optional power selector
Buy the Carling 02461032 – Reliable Circuit Protection for Industrial Applications
Secure your electrical systems with the Carling circuit breaker. Designed for durability in industrial and renewable energy applications, it offers multiple pole configurations, high current ratings, and international certifications. Easy to install with front or back mounting options, heavy-duty wiring connections, and customizable features including time delays and power selector. Invest in proven protection for your critical equipment and ensure safety and compliance around the clock. Purchase online today for fast delivery and expert support.
Buy Carling 02461032 now and experience unmatched reliability, versatile configurations, and high-performance circuit protection for demanding industrial environments.
Frequently Asked Questions
Where can I buy Carling Technologies EA4B02461032EDF?
You can click on the BUY or RFQ button to purchase EA4B02461032EDF from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part EA4B02461032EDF?
You can download the EA4B02461032EDF datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of EA4B02461032EDF?
Carling Technologies
