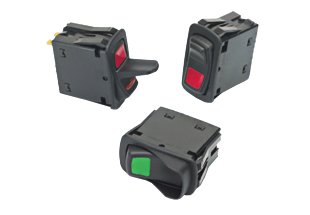

Carling Technologies L11D1AC01ANZ00000 Rocker Switch
The Carling Technologies L-Series snap-in rocker switches provide a wide array of customization options, including choices for ratings, colors, illuminations, and laser-etched legends. These single or double pole switches feature a broad choice of actuator styles, colors, and lenses. Sealed to IP67, they are ideal for above-panel applications in construction, agriculture, and on-highway vehicles. The switches utilize LED lighting for long-lasting illumination and incorporate a roller pin to expand the operating temperature range. Available with industry-standard termination options, the L-Series offers versatility and reliability for diverse industrial needs.
Carling Technologies L11D1AC01ANZ00000 Rocker Switch Specifications:
- Poles: 1-2
- Amps: 1-20
- VAC: 125-250
- VDAC: 12-24
- Contact Rating: 4VA @ 24VDC (MAX) resistive
- Sealing: IP67
- Mounting Hole: 1.734 x .867 in [44.0mm x 22.0mm]
- Panel Thickness Range: Acceptable Panel Thickness .030 to .156 (.76mm to 3.96mm)
- Actuator Travel: 26° (13° from center)
- Terminal Options: .250 or .187 tabs
- Terminal Options Count: up to 12
- Material: Nylon 66 GF
- Flammability Rating: 94V0
- LED Lighting: Rated 100,000 hours
- Incandescent Lighting: Rated 10,000 hours
- Operating Temperature: -40°C to + 85°C
- Dielectric Strength: 1250 Volts RMS between pole to pole, 3750 Volts RMS between live parts and accessible surfaces
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4 VDC
- Life: Up to 100,000 cycles (momentary)
- Vibration: Per Mil-Std 202F, Method 204D
- Salt Spray: Per Mil-Std 202F, Method 101D
- Thermal Shock: Per Mil-Std 202F, Method 107F
- Moisture Resistance: Per Mil-Std 202F, Method 106F
- Physical Shock: Per Mil-Std 202F, Method 213B
