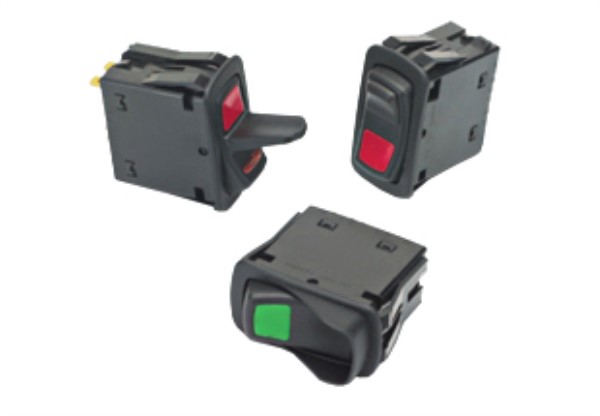

Carling Technologies L12D1AH01AGZ00000 Rocker Switch
The Carling Technologies L-Series snap-in rocker switches provide a wide range of customizable options, including ratings, colors, illuminations, and laser-etched legends. These single or double pole switches feature a broad choice of actuator styles, colors, and lenses. Sealed to IP67, they are suitable for above-panel components and offer robust performance in demanding environments. Applications include construction, agriculture, and on-highway vehicles. The switches utilize LED lighting for long-lasting illumination and incorporate a roller pin to expand the operating temperature range. They are available with industry-standard termination options and feature a robust mounting design.
Carling Technologies L12D1AH01AGZ00000 Rocker Switch Specifications:
- Poles: Single or Double
- Amps: 1-2, 4-20
- VAC: 125-250
- VDC: 12-24
- Sealing: IP67
- Terminal Options: .250 or .187 tabs
- Terminal Options Count: Up to 12
- Contact Rating: 4VA @ 24VDC (MAX)
- Dielectric Strength: 1250 Volts RMS (pole to pole), 3750 Volts RMS (live parts to accessible surfaces)
- Operating Temperature: -40°C to +85°C
- Vibration: Per Mil-Std 202F, Method 204D
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4 VDC
- Life Expectancy: Up to 100,000 cycles (momentary), 50,000 cycles (momentary circuit)
- Material (Base): Nylon 66 GF, rated to 85°C, flammability rating of 94V0
- Material (Actuator): Thermoplastic polycarbonate with hard Nylon 66 thermoplastic surface overlay
- Material (Lens): Polycarbonate rated at 100°C
- Mounting Hole: 1.734 x .867 in [44.0mm x 22.0mm]
- Panel Thickness Range: .030 to .156 in [0.76mm to 3.96mm]
Buy the L12D1AH01-AGZ00-000 CARLING TECHNOLOGIES Rocker Switch | myMectronic
Securely purchase the Carling Technologies L12D1AH01-AGZ00-000 Rocker Switch online today.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies L12D1AH01AGZ00000?
You can click on the BUY or RFQ button to purchase L12D1AH01AGZ00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part L12D1AH01AGZ00000?
You can download the L12D1AH01AGZ00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of L12D1AH01AGZ00000?
Carling Technologies
