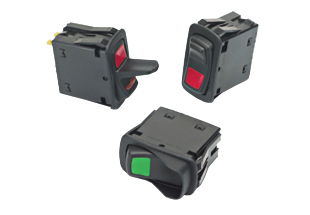

Carling Technologies L14D1AC01AMZ00000 Rocker Switch
The Carling Technologies L-Series snap-in rocker switches provide numerous unique options for ratings, colors, illuminations, and laser-etched legends. These single or double-pole switches offer a broad choice of actuator styles, colors, and lenses. They feature sealed protection (IP67) and are suitable for demanding environments. Available with standard termination options and a robust design, the L-Series is ideal for construction, agriculture, and on-highway applications.
Carling Technologies L14D1AC01AMZ00000 Rocker Switch Specifications:
- Poles: 1-2
- Amps: 1-20
- VAC: 125-250
- VDAC: 12-24
- Contact Rating: 4VA @ 24VDC (MAX) resistive
- Sealing: IP67
- Mounting Hole: 1.734 x .867 in [44.0mm x 22.0mm]
- Panel Thickness Range: Acceptable Panel Thickness .030 to .156 (.76mm to 3.96mm)
- Actuator Travel: 26° (13° from center)
- Terminal Options: .250 or .187 tabs
- Terminal Options Count: up to 12
- Material: Nylon 66 GF
- Flammability Rating: 94V0
- Operating Temperature: -40°C to + 85°C
- Dielectric Strength: 1250 Volts RMS between pole to pole, 3750 Volts RMS between live parts and accessible surfaces
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4 VDC
- Life Expectancy: Up to 100,000 cycles
- Lighted Incandescent Rating: 10,000 hours
- LED Rating: 100,000 hours 1/2 life
- Salt Spray Resistance: Per Mil-Std 202F, Method 101D, 48 Hrs.
- Thermal Shock Resistance: Per Mil-Std 202F, Method 107F, -55°C to 85°C
- Moisture Resistance: Per Mil-Std 202F, Method 106F
- Physical Shock Resistance: Per Mil-Std 202F, Method 213B, 30G’s
Buy the L14D1AC01-AMZ00-000 CARLING TECHNOLOGIES Rocker Switch | myMectronic
Purchase the Carling Technologies L14D1AC01-AMZ00-000 Rocker Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies L14D1AC01AMZ00000?
You can click on the BUY or RFQ button to purchase L14D1AC01AMZ00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part L14D1AC01AMZ00000?
You can download the L14D1AC01AMZ00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of L14D1AC01AMZ00000?
Carling Technologies
