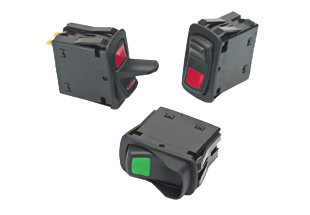

Carling Technologies L21B1CDD13AAXX1XXXDC1 Rocker Switch
The Carling Technologies L-Series snap-in rocker switches provide a wide range of customizable options for various industrial applications. These switches feature choices for ratings, colors, illuminations, and laser-etched legends, along with a broad selection of actuator styles and lenses. Sealed to IP67, they are suitable for above-panel components and offer robust performance in demanding environments. The switches utilize LED lighting for long-lasting illumination and incorporate a roller pin to expand the operating temperature range. With standard mounting hole dimensions and various terminal options, the L-Series rocker switches are a versatile solution for diverse electrical needs.
Carling Technologies L21B1CDD13AAXX1XXXDC1 Rocker Switch Specifications:
- Poles: 1-2
- Amps: 1-20
- VAC: 125-250
- VDAC: 12-24
- Contact Rating: 4VA @ 24VDC (MAX) resistive
- Sealing: IP67
- Mounting Hole: 1.734 x .867 in [44.0mm x 22.0mm]
- Panel Thickness Range: Acceptable Panel Thickness .030 to .156 (.76mm to 3.96mm)
- Actuator Travel: 26° from center (13° for position 2)
- Terminal Options: .250 or .187 tabs with up to 12 terminal options
- Material: Base: Nylon 66 GF rated to 85°C with a flammability rating of 94V0; Actuator: Thermoplastic polycarbonate with a hard Nylon 66 thermoplastic surface overlay; Lens: Polycarbonate rated at 100°C
- LED Lighting: Rated 100,000 hours
- Incandescent Lighting: Rated 10,000 hours
- Operating Temperature: -40°C to + 85°C
- Dielectric Strength: 1250 Volts RMS between pole to pole, 3750 Volts RMS between live parts and accessible surfaces
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4 VDC
- Life: Up to 100,000 cycles (momentary), 50,000 cycles (circuit and load dependent)
Buy the L21B1CDD1-3AAXX-1XX-XDC1 CARLING TECHNOLOGIES Rocker Switch | myMectronic
Securely purchase the Carling Technologies L21B1CDD1-3AAXX-1XX-XDC1 Rocker Switch online today.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies L21B1CDD13AAXX1XXXDC1?
You can click on the BUY or RFQ button to purchase L21B1CDD13AAXX1XXXDC1 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part L21B1CDD13AAXX1XXXDC1?
You can download the L21B1CDD13AAXX1XXXDC1 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of L21B1CDD13AAXX1XXXDC1?
Carling Technologies
