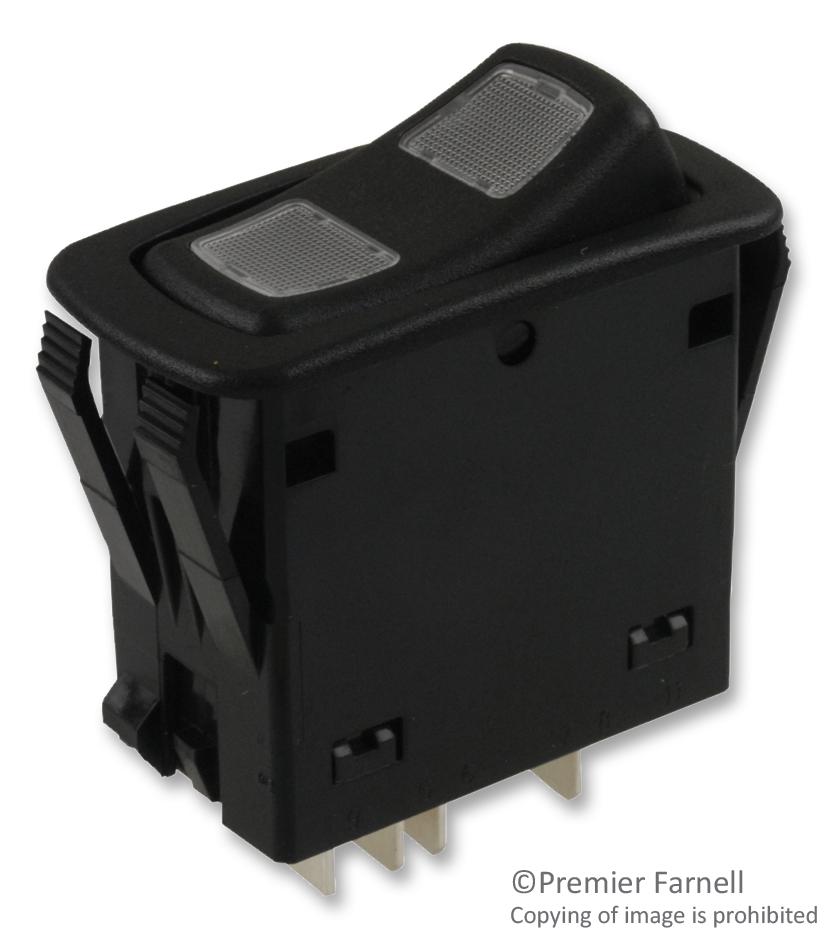

Carling Technologies L26D1CHH1A1100000 Sealed Rocker Switch
The L26D1CHH1-A1100-000 is a double-pole double-throw sealed rocker switch with a black actuator, green LED indicator, and quick-connect terminals. It offers versatile design options, high-performance reliability, and excellent resistance to extreme temperatures from -40°C to +85°C. Built with durable materials such as nylon 66 for the base and acetal for the lock mechanism, it withstands vibration, shock, and moisture. The switch features a dielectric strength of 1250 VRMS, insulation resistance of 50 MΩ, and has an operating life of 100,000 cycles, making it ideal for industrial and agricultural machinery.
Carling Technologies L26D1CHH1A1100000 Sealed Rocker Switch Specifications:
- Configuration: Double Pole Double Throw (DPDT)
- Actuator: Black plastic with 26° angular travel
- LED Indicator: Green, internally ballasted, rated for 100,000 hours
- Electrical Rating: 15A at 125VAC, 10A at 250VAC, resistive load
- Dielectric Strength: 1250 VRMS between pole to pole
- Insulation Resistance: 50 Megaohms
- Operating Temperature: -40°C to +85°C
- Material: Nylon 66 base, acetal lock, polycarbonate actuator and lens
- Vibration & Shock Resistance: 10G’s for vibration, tested per Mil-Std 202F
- Durability: 100,000 operating cycles minimum
- Sealing: IP67 rated for front panel, resistance to moisture and salt spray
- Dimensions: Mounting hole size 1.734 x 0.867 inches (44.0mm x 22.0mm)
Buy the Carling Series L26 Double Pole Double Throw Switch: L26D1CHH1-A1100-000
Purchase the Carling Series L26D1CHH1-A1100-000 sealed rocker switch online today. Designed for harsh environments, it features a durable construction, green LED indicator, and quick-connect terminals for easy wiring. With an operating temperature range from -40°C to +85°C, it withstands vibration, shock, and moisture, making it ideal for industrial, agricultural, and transportation applications. Ensure reliable system operation by choosing this high-performance switch, available now for fast online ordering and delivery.
Order your Carling Series L26DPDT switch today and ensure your machinery operates reliably with this rugged, sealed rocker switch.
