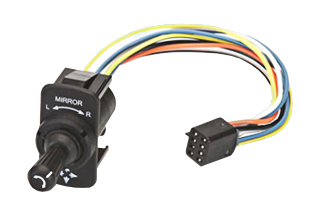

Carling Technologies LMR012 Mirror Rotate Control
The Carling Technologies LMR-Series joystick offers a versatile solution for controlling mirrors and motors in transportation equipment. This joystick allows for the operation of one or two mirrors and up to four separate motors from a single, easy-to-use control. It's commonly integrated with dimmer and wiper/washer controls to provide a comprehensive dashboard control system. The LMR-Series features a sliding contact mechanism and incorporates internal boot and potted wire leads to protect critical components from dust and moisture, ensuring reliable performance in demanding environments. It is compatible with Delphi-Packard connectors and is available with various legend options for clear identification.
Carling Technologies LMR012 Mirror Rotate Control Specifications:
- Actuator: 4 axis joy stick style
- Termination: 9” wire leads with Delphi-Packard connector #12047886 3
- Electrical: 1A 14V; .5A 28V
- Mechanism: Sliding contacts in conjunction with a circuit board
- Sealing: Internal boot and potted wire leads protect critical component from dust and moisture
- Legend: Imprinted in white; Mirror L & R legend on top of bracket and detent and directional legend on actuator
- Wire Color: {'CAV I.D.': 'A', 'Color': 'Orange'}
- Wire Color 2: {'CAV I.D.': 'B', 'Color': 'White'}
- Wire Color 3: {'CAV I.D.': 'C', 'Color': 'Lt. Blue'}
- Wire Color 4: {'CAV I.D.': 'D', 'Color': 'Yel-BLK'}
- Wire Color 5: {'CAV I.D.': 'E', 'Color': 'Lt. Bl-BLK'}
- Wire Color 6: {'CAV I.D.': 'F', 'Color': 'Wht-NLK'}
- Plug: {'Color': 'Black'}
- Mounting Hole: 1.480
- Connector P/N: 12045688
- Connector P/N 2: 12047886
