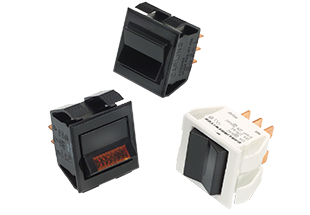

Carling Technologies LTIGK516SWHGNNBLXHU1 Illuminated Rocker Switch
The CARLING TECHNOLOGIES LTIGK51-6S-WH-GN-NBL-XHU1 is a double-pole illuminated rocker switch designed for a wide range of applications. Featuring an all-nylon construction and snap-in mounting, this switch provides fast and cost-effective assembly. It is rated for AC applications and suitable for low-voltage DC applications, ensuring compatibility across various markets. The illuminated design enhances visibility and functionality, making it ideal for appliances, HVAC systems, on-highway vehicles, commercial food equipment, and medical devices. Carling Technologies is a leading manufacturer of electrical and electronic components, committed to providing reliable and innovative solutions.
Carling Technologies LTIGK516SWHGNNBLXHU1 Illuminated Rocker Switch Specifications:
- poles: Single
- amps: 5-15 Amps
- vac: 125-250 VAC
- vdc: 6-28 VDC
- dielectric_strength: 1000V - live to dead metal parts
- electrical_life: 50,000 cycles (maintained), 25,000 cycles (momentary)
- operating_temperature: 32°F to 185°F (0°C to 85°C)
- circuit_type: LTG available with circuits G, H, I, J, M, N, P, Q, R, T, U, V, Y, Z
- center_position: O - No Center OFF, Two position
- rating: 41 - 5A 250VAC, 10A 125VAC
- actuator_style: T - Rocker
- actuator_color: White
- base_color: White
- lens_color: Amber
- lamp_voltage: 125V neon
Buy the LTIGK51-6S-WH-GN-NBL-XHU1 CARLING TECHNOLOGIES Illuminated Rocker Switch | myMectronic
Purchase the CARLING TECHNOLOGIES LTIGK51-6S-WH-GN-NBL-XHU1 Illuminated Rocker Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies LTIGK516SWHGNNBLXHU1?
You can click on the BUY or RFQ button to purchase LTIGK516SWHGNNBLXHU1 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part LTIGK516SWHGNNBLXHU1?
You can download the LTIGK516SWHGNNBLXHU1 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of LTIGK516SWHGNNBLXHU1?
Carling Technologies
