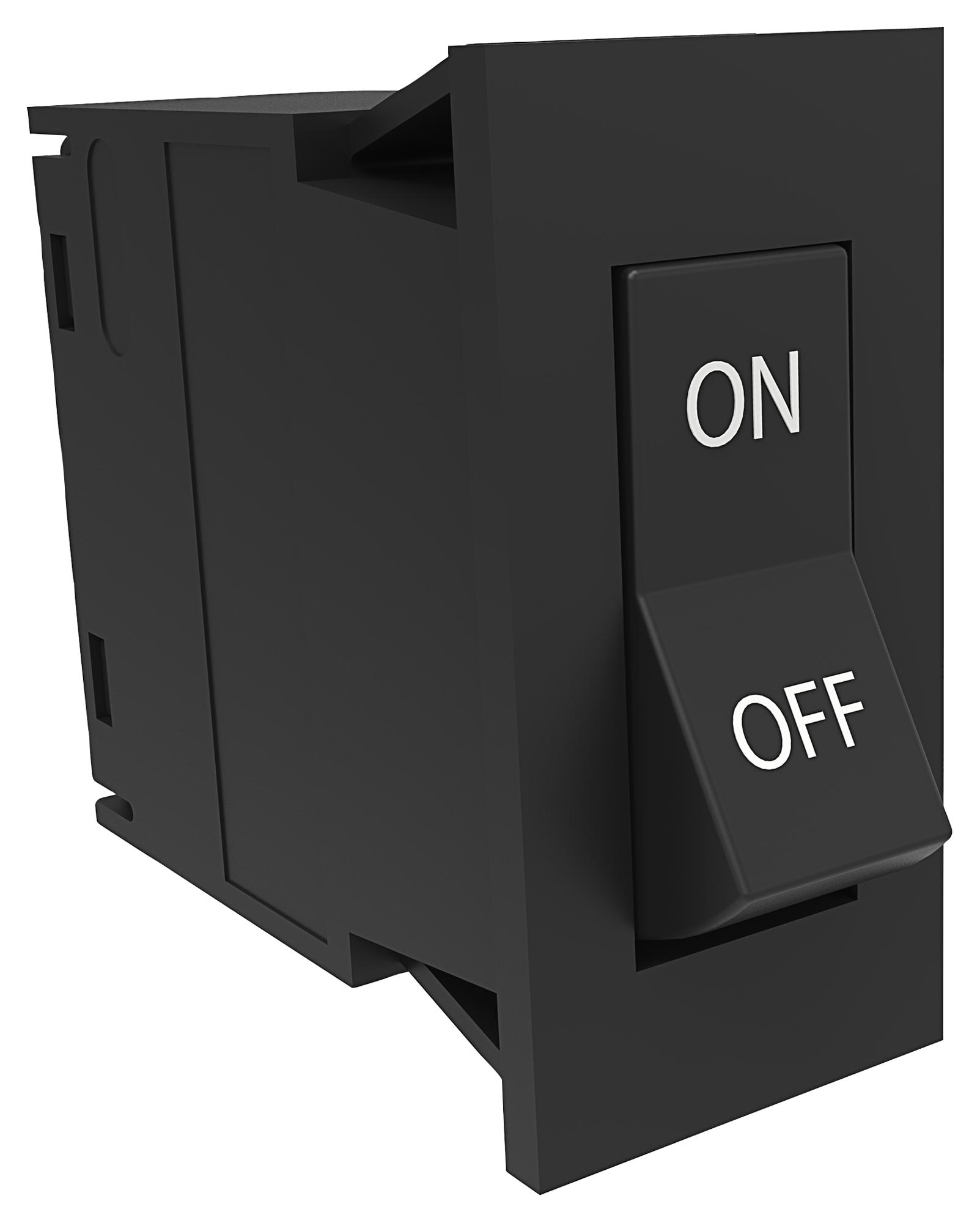

Carling Technologies MA1B324101A271E Circuit Breaker
The M-Series is a compact, cost-effective hydraulic-magnetic circuit breaker designed for space-saving applications. It offers front panel snap-in mounting and parallel pole configurations with multiple actuation styles, including rocker, illuminated rocker, paddle, baton, push-to-reset, and push-pull. It features long-term reliable wiping contact mechanisms, optional LED illumination, and Bezel Rockerguard to prevent unintentional actuation. Available in various current ratings from 0.02 to 50 amps, with versions for 125VAC, 250VAC, and 80VDC, ideal for telecom, transportation, marine, and medical equipment.
Carling Technologies MA1B324101A271E Circuit Breaker Specifications:
- Number of Poles: 1 or 2, parallel configuration
- Current Ratings: 0.02 to 50 amps
- Voltage Ratings: 125VAC, 250VAC, 80VDC
- Actuator Types: rocker, illuminated rocker, paddle, baton, push-to-reset, push-pull
- Mounting: front panel snap-in
- Mechanical Endurance: 10,000 ON-OFF operations @ 6 per minute
- Electrical Durability: rated for overload trip even when actuator is held
- Environmental Ratings: MIL-PRF-55629, MIL STD 202, MIL-PRF-39019F ingress protection
- Dielectric Strength: 1500V, 50/60Hz for one minute between terminals
- Temperature Range: -40°C to +85°C
- Certifications: UL, CSA, VDE, TUV
Buy the Carling Series M Circuit Breaker: Hydraulic Magnetic 50A
Discover the high-quality Carling Series M Circuit Breaker, featuring hydraulic magnetic protection, multiple actuation styles, and current ratings up to 50 amps. Its compact, space-saving design suits telecom, marine, transportation, and medical equipment applications. Easy front panel snap-in mounting and reliable long-term wiping contact mechanisms ensure durability and safety. Choose from various styles including rocker, illuminated, paddle, and push-pull actuators with optional LED indicators. Order online now for guaranteed quality and maximum operational dependability in demanding environments.
Buy Carling Series M circuit breaker now and experience unmatched reliability, versatile actuation options, and space-saving design for your electrical systems.
Frequently Asked Questions
Where can I buy Carling Technologies MA1B324101A271E?
You can click on the BUY or RFQ button to purchase MA1B324101A271E from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part MA1B324101A271E?
You can download the MA1B324101A271E datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of MA1B324101A271E?
Carling Technologies
