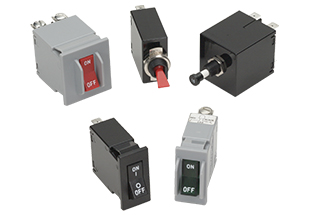

Carling Technologies MA1X008828A362C Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' M-Series hydraulic-magnetic circuit breakers are designed for high-performance applications requiring a compact, front panel mount design. These breakers offer extensive design flexibility with multiple agency approvals and options for terminals, panel hardware, and actuator styles. The wiping contacts ensure longevity, and they are available in one to two pole configurations, rated from 0.02 to 50 amps, up to 250VAC/80VDC. Typical applications include telecom, transportation, marine, generators, power supplies, medical equipment, and commercial food equipment.
Carling Technologies MA1X008828A362C Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage: 125/250 VAC, 50/60 Hz, 80 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00 thru 15.0 amps in 1 amp increments, 18.0, 20.0, 25.0, 30.0
- Voltage Coils: DC - 6V, 12V; AC - 120V
- Auxiliary Switch Rating: SPDT; 7A 250VAC, 7A (Res) 28VDC, 4A (Ind.) 28VDC, 0.25A 80VDC (Res) (silver contacts), 0.1A 125VAC (gold contacts)
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA 1500V, 50/60 Hz for one minute
- Number of Poles: 1 or 2
- Weight: Approximately 30 grams/pole
- Operating Temperature: -40° C to +85° C
- Shock: Withstands 100 Gs, 6ms
- Vibration: Withstands 0.060” excursion from 10-55 Hz, and 10 Gs 55-500 Hz
- Moisture Resistance: Method 106D
- Chemical Resistance: Detergents or alcohol
