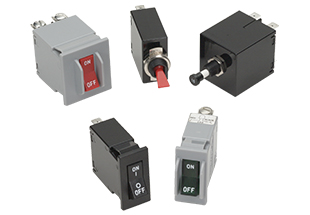

Carling Technologies MA2X013644A36BC Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' M-Series hydraulic-magnetic circuit breakers are designed for high-performance applications requiring a compact, front panel mount design. These breakers offer extensive design flexibility with multiple agency approvals and options for terminals, panel hardware, and actuator styles. The wiping contacts ensure longevity, and they are available in one to two-pole configurations, rated from 0.02 to 50 amps, up to 250VAC/80VDC. Typical applications include telecom, transportation, marine, generators, power supplies, medical equipment, and commercial food equipment.
Carling Technologies MA2X013644A36BC Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage: 125/250 VAC, 80 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00 thru 15.0 amps in 1 amp increments, 18.0, 20.0, 25.0, 30.0
- Auxiliary Switch Rating: SPDT; 7A 250VAC, 7A (Res) 28VDC, 4A (Ind.) 28VDC, 0.25A 80VDC (Res) (silver contacts), 0.1A 125VAC (gold contacts)
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA 1500V, 50/60 Hz for one minute
- Resistance per Pole: 0.10-20.0 amps: ±25%, 20.1 - 50.0 amps: ±35%
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All M-Series Circuit Breakers will trip on overload
- Trip Indication: Actuator moves positively to the OFF position on overload
- Number of Poles: 1 or 2
- Weight: Approximately 30 grams/pole
- Operating Temperature: -40° C to +85° C
- Shock: Withstands 100 Gs, 6ms
- Vibration: Withstands 0.060” excursion from 10-55 Hz, and 10 Gs 55-500 Hz
Buy the MA2-X-01-364-4-A36-B-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES MA2-X-01-364-4-A36-B-C Hydraulic-Magnetic Circuit Breaker securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies MA2X013644A36BC?
You can click on the BUY or RFQ button to purchase MA2X013644A36BC from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part MA2X013644A36BC?
You can download the MA2X013644A36BC datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of MA2X013644A36BC?
Carling Technologies
