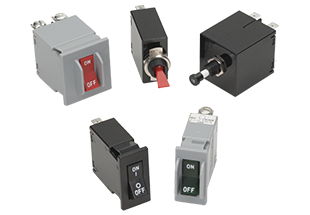

Carling Technologies MD1B346151A35BC Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES M-Series hydraulic-magnetic circuit breakers are designed for high-performance applications requiring a compact, front panel mount design. These breakers offer extensive design flexibility with multiple agency approvals and options for terminals, panel hardware, and actuator styles. The wiping contacts ensure longevity, and they are available in one to two pole configurations, rated from 0.02 to 50 amps, up to 250VAC/80VDC. Typical applications include telecom, transportation, marine, generators, power supplies, medical equipment, and commercial food equipment.
Carling Technologies MD1B346151A35BC Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage: 125/250 VAC, 80 VDC
- Current Ratings: 0.02 to 50 amps
- Max IC: 1,000 amps
- Trip Free: All M-Series Circuit Breakers will trip on overload
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations
- Resistance: Values from Line to Load Terminal
- Short Circuit Capacity: 1000 Amps
- Auxiliary Switch Rating: SPDT; 7A 250VAC, 7A (Res) 28VDC, 4A (Ind.) 28VDC, 0.25A 80VDC
Buy the MD1-B-34-615-1-A35-B-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES MD1-B-34-615-1-A35-B-C Hydraulic-Magnetic Circuit Breaker securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies MD1B346151A35BC?
You can click on the BUY or RFQ button to purchase MD1B346151A35BC from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part MD1B346151A35BC?
You can download the MD1B346151A35BC datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of MD1B346151A35BC?
Carling Technologies
