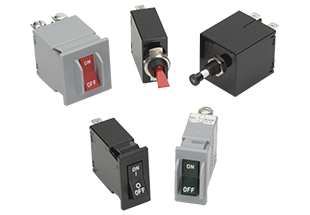

Carling Technologies ME1X016470A32AC Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES M-Series hydraulic-magnetic circuit breakers are designed for high-performance applications requiring a compact, front panel mount design. These breakers offer extensive design flexibility with multiple agency approvals and options for terminals, panel hardware, and actuator styles. The wiping contacts ensure longevity, and they are available in one to two pole configurations, rated from 0.02 to 50 amps, up to 250VAC/80VDC. Typical applications include telecom, transportation, marine, generators, power supplies, medical equipment, and commercial food equipment.
Carling Technologies ME1X016470A32AC Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage: 125/250 VAC, 50/60 Hz, 80 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00 thru 15.0 amps in 1 amp increments, 18.0, 20.0, 25.0, 30.0
- Standard Voltage Coils DC: 6V, 12V; AC - 120V
- Auxiliary Switch Rating: SPDT; 7A 250VAC, 7A (Res) 28VDC, 4A (Ind.) 28VDC, 0.25A 80VDC (Res) (silver contacts), 0.1A 125VAC (gold contacts)
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA 1500V, 50/60 Hz for one minute
- Resistance per Pole: 0.10-20.0 amps: ±25%, 20.1 - 50.0 amps: ±35%
- Number of Poles: 1 or 2
- Weight: Approximately 30 grams/pole
- Operating Temperature: -40° C to +85° C
- Chemical Resistance: Detergents or alcohol, avoid hydrocarbon solvents
Buy the ME1-X-01-647-0-A32-A-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES ME1-X-01-647-0-A32-A-C Hydraulic-Magnetic Circuit Breaker securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies ME1X016470A32AC?
You can click on the BUY or RFQ button to purchase ME1X016470A32AC from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part ME1X016470A32AC?
You can download the ME1X016470A32AC datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of ME1X016470A32AC?
Carling Technologies
