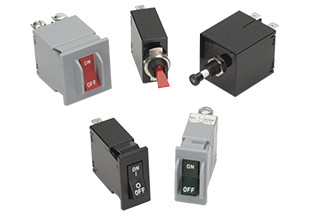

Carling Technologies MM1B3461512BBBE Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' M-Series hydraulic-magnetic circuit breakers are designed for high-performance applications requiring a compact, front panel mount design. These breakers offer extensive design flexibility with multiple agency approvals and options for terminals, panel hardware, and actuator styles. Wiping contacts assure longevity. They are available in one to two or parallel pole configurations, rated from 0.02 to 50 amps, up to 250VAC/80VDC with a maximum short-circuit current rating of 1,000 amps (600 amps TUV and 500 amps VDE). Typical applications include telecom, transportation, marine, generators, power supplies, medical equipment, and commercial food equipment.
Carling Technologies MM1B3461512BBBE Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage: 125/250 VAC, 80 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00 thru 15.0 amps in 1 amp increments, 18.0, 20.0, 25.0, 30.0
- Auxiliary Switch Rating: SPDT; 7A 250VAC, 7A (Res) 28VDC, 4A (Ind.) 28VDC, 0.25A 80VDC (Res) (silver contacts), 0.1A 125VAC (gold contacts)
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA 1500V, 50/60 Hz for one minute
- Resistance per Pole: 0.10-20.0 amps: ±25%, 20.1 - 50.0 amps: ±35%
- Number of Poles: 1 or 2
- Weight: Approximately 30 grams/pole
- Operating Temperature: -40° C to +85° C
- Shock: Withstands 100 Gs, 6ms
- Vibration: Withstands 0.060” excursion from 10-55 Hz, and 10 Gs 55-500 Hz
