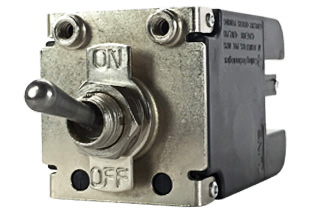

Carling Technologies MS1B1443031BBAA Sealed Metal Toggle Breaker
The Carling Technologies MS1-B series hydraulic-magnetic circuit breaker offers a compact and robust solution for critical applications. Designed with a sealed metal toggle actuator, this breaker provides reliable protection while meeting stringent ingress protection standards like IP68 and military specifications such as MIL-PRF-39019F. Its versatility extends to various configurations, including 1-3 pole setups, and amperage ratings from 0.02 to 30 amps, making it suitable for communication equipment, vehicles, generators, and power supplies. The breaker's design incorporates features like terminal barriers meeting UL 1077 spacing requirements and an optional auxiliary switch for status indication, enhancing its functionality and integration capabilities.
Carling Technologies MS1B1443031BBAA Sealed Metal Toggle Breaker Specifications:
- poles: 1-3
- amperes: 0.02 - 30
- voltage: 120/250 VAC, 65 VDC
- short_circuit_current: Up to 3000 amps
- ip_rating: IP68
- military_standards: MIL-PRF-39019F, MIL-STD-202
- operating_temperature: -40°C to +85°C
- auxiliary_switch_rating: 5A @ 125VAC, 3A @ 32VDC
- insulation_resistance: Minimum of 100 Megohms @ 500VDC
- weight: Approximately 1.8 oz (50 G) per pole
- agency_certifications: UL 1077 cRUus, TUV Certified
- shock_resistance: Withstands 100G’s, 6ms
- vibration_resistance: Withstands 0.060” excursion from 10-55 Hz
- salt_spray_resistance: Method 101, Condition A
- moisture_resistance: Method 106G
- thermal_shock_resistance: Method 107D, Condition A
Buy the MS1-B-14-430-3-1BB-A-A CARLING TECHNOLOGIES Sealed Metal Toggle Breaker | myMectronic
Securely purchase the Carling Technologies MS1-B-14-430-3-1BB-A-A circuit breaker online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies MS1B1443031BBAA?
You can click on the BUY or RFQ button to purchase MS1B1443031BBAA from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part MS1B1443031BBAA?
You can download the MS1B1443031BBAA datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of MS1B1443031BBAA?
Carling Technologies
