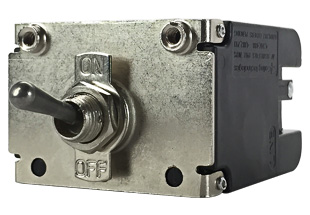

Carling Technologies MS3B3462031CBA0NC Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES MS3-B-34-620-3-1CB-A-0NC hydraulic-magnetic circuit breaker offers a compact and rugged solution for critical applications. Designed to meet IP68 requirements and MILPRF-39019F standards, this breaker is ideal for military, communication equipment, and power supply applications. It provides reliable protection with ratings from 0.02 to 30 amps, up to 240VAC/65VDC, and a maximum short-circuit current rating of 3,000 amps. The sealed metal toggle actuator ensures durability and protection in harsh environments.
Carling Technologies MS3B3462031CBA0NC Hydraulic-Magnetic Circuit Breaker Specifications:
- Series: MS
- Actuator: Sealed Toggle
- Poles: 1-3
- Current Rating: 0.02 - 30 Amps
- Voltage Ratings: 65VDC, 240VAC, 120/240VAC
- Short Circuit Rating: Up to 3,000 Amps
- Auxiliary Switch Rating: 5A @ 125VAC, 3A @ 32VDC
- Dielectric Strength: 1500V, 50/60 Hz
- Insulation Resistance: Minimum 100 Megohms @ 500VDC
- Weight: Approximately 1.8 oz (50 G) per pole
- Agency Certifications: UL 1077, cRUus, TUV Certified
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP68
- Material Compliance: Non-nutrient to fungus growth
