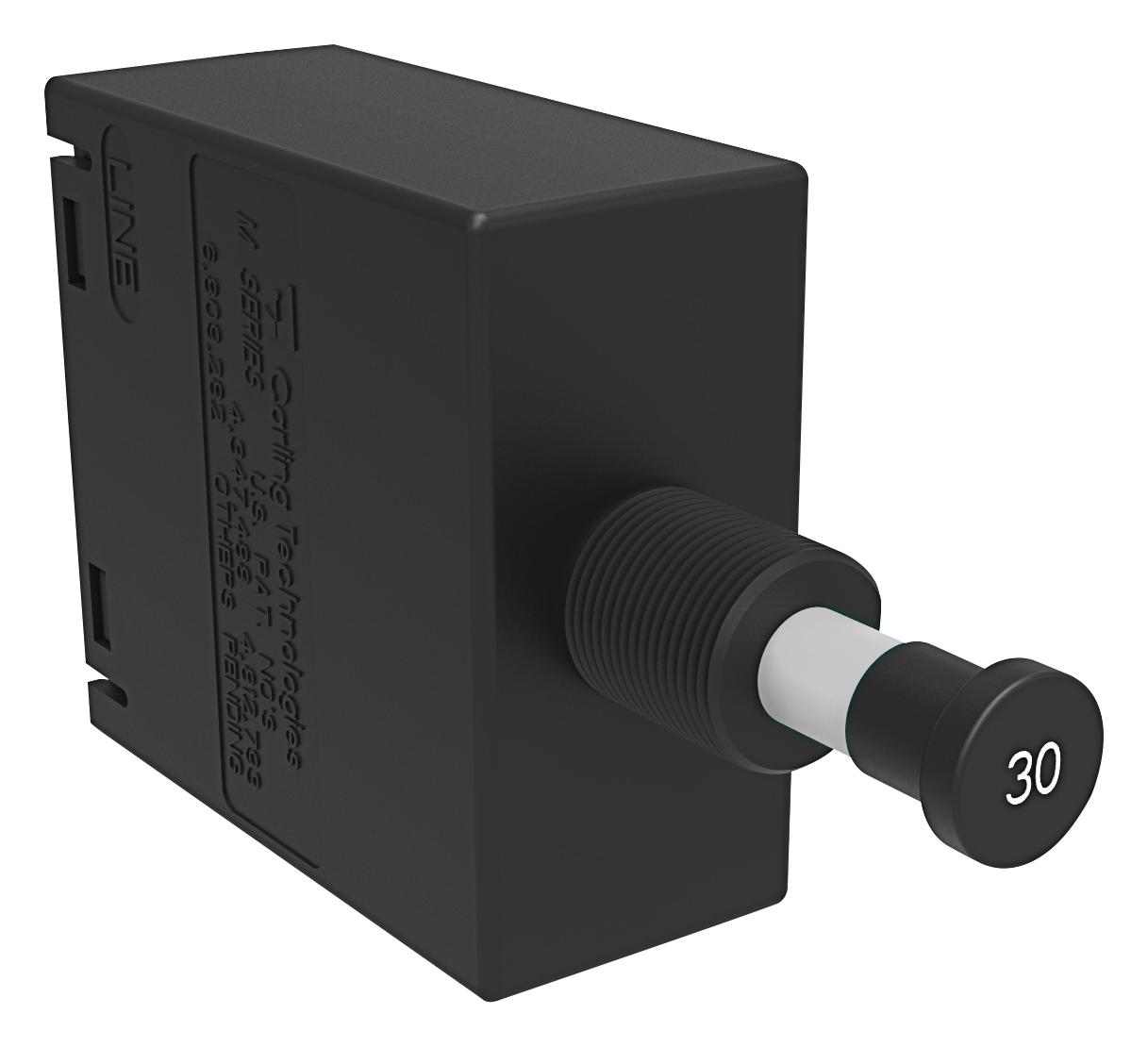

Carling Technologies MT1B146201A24BJ Circuit Breaker
The M-Series is a compact, cost-effective hydraulic-magnetic circuit breaker designed for space-saving applications with front panel snap-in mounting. It offers multiple styling options including rocker, illuminated rocker, paddle, baton, push-to-reset, and push-pull actuators, along with a Vis-Rocker two-color actuator. Available in 1, 2, or parallel poles, with current ratings from 0.02 to 50 amps, and voltage options of 125/250VAC or 80VDC. Its long-term reliability is ensured by a wiping contact mechanism and an exclusive Rockerguard bezel to prevent inadvertent actuation. Suitable for telecom, transportation, marine, power supplies, medical equipment, and generator applications, complying with MIL-PRF-55629, MIL STD 202, and ingress protection standards.
Carling Technologies MT1B146201A24BJ Circuit Breaker Specifications:
- Maximum Voltage: 125/250 VAC 50/60Hz, 80 VDC
- Current Ratings: 0.02 to 50 Amps
- Number of Poles: 1, 2, or parallel poles
- Voltage Compatibility: 125/250VAC, 80VDC
- Electrical Endurance: 10,000 ON-OFF operations at rated current and voltage
- Contact Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: 1500V, 50/60Hz, one minute between isolated terminals
- Environmental Resistance: Shock (100 Gs), vibration, moisture, salt spray, thermal shock, -40°C to +85°C
- Physical Dimensions: Compatible with DIN/IEC standard panel cutouts, weight approx. 30 grams per pole
- Construction: Sealed toggle actuator, multiple handle styles, metal and plastic components designed for durability
Buy the Buy Carling M-Series Circuit Breaker Part Number MT1B146201A24BJ Online
Order the Carling M-Series circuit breaker online today to ensure optimal protection and reliability for your telecom, marine, power, and industrial systems. This space-saving, multifunctional breaker features a variety of actuator styles, pole configurations, and ratings from 0.02 to 50 amps. Designed for demanding environments, it meets MIL and IEC standards with long operational life and advanced contact technology. Enhance your system safety and control efficiency—purchase now for fast delivery and technical support.
Buy Carling M-Series circuit breaker now and experience unmatched reliability and performance for industrial and control system applications.
Frequently Asked Questions
Where can I buy Carling Technologies MT1B146201A24BJ?
You can click on the BUY or RFQ button to purchase MT1B146201A24BJ from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part MT1B146201A24BJ?
You can download the MT1B146201A24BJ datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of MT1B146201A24BJ?
Carling Technologies
