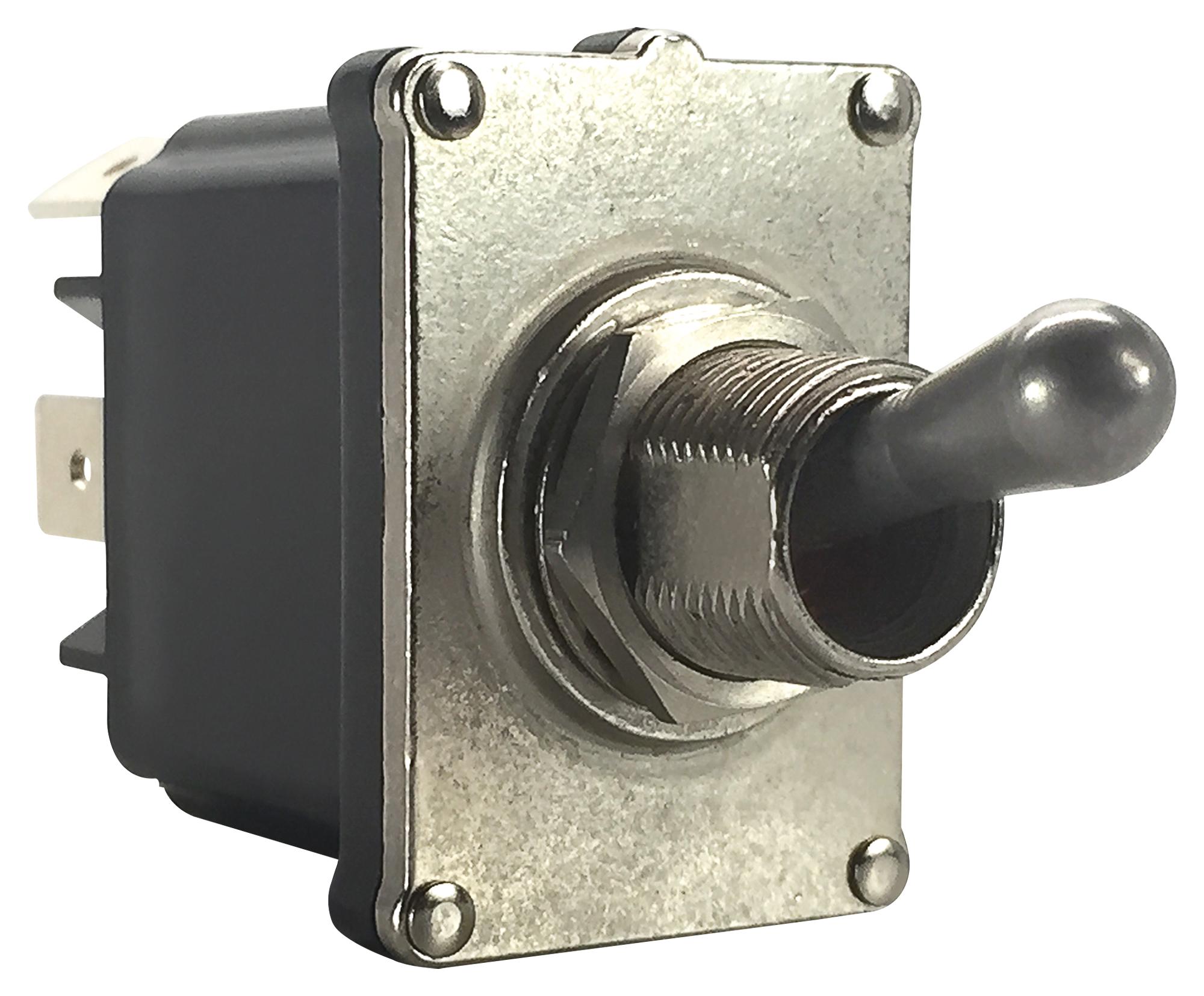

Carling Technologies STJ1E453 Sealed Toggle Switch
The sealed toggle switch features a MIL-DTL-3950G compliant design with silicone seals bonded to the metal toggle, pin, and bushing for optimal environmental protection, vibration, and shock resistance. It offers a IP68 sealing performance, suitable for demanding applications like military, law enforcement, and off-highway vehicles. With a rugged brass or copper construction, optional O-ring sealing, and high durability for extreme temperatures, it ensures reliable electrical operation, up to 50,000 cycles life, and compliance with UL 61058-1 standards. The switch includes silicate internal seals, threaded bushing with keyway, and versatile pole configurations.
Carling Technologies STJ1E453 Sealed Toggle Switch Specifications:
- Electrical Rating: 16A, 12/24V
- Sealing: IP68, silicone seals bonded to toggle, pin, and bushing
- Materials: Brass or copper, tin-plated terminals
- Operational Temperature: -40°C to +85°C
- Mechanical Endurance: 150,000 cycles
- Electrical Endurance: 50,000 operations
- Contact Resistance: 10 milliOhms max.
- Insulation Resistance: 50 MegOhms at 500VDC
- Dielectric Strength: 1500 Volts RMS
- Mounting: Threaded bushing with keyway, 15/32"-32 UNS-2A
- Actuation Force: Initial +0.3 lb
- Vibration & Shock Resistance: MIL-STD-202G Methods 204D, 213B
- Temperature Range: -40°C to +85°C
- Seals compliant with A-A-59588 and IEC 60529 IP68 standard.
Buy the Carling Series Sealed Toggle IP68: STJ1E453
Order the Carling STJ1E453 sealed toggle switch online today and ensure reliable performance in harsh environments. Designed to meet MIL-DTL-3950G standards, it offers IP68 sealing, silicone bonded seals, and durable construction suitable for military, law enforcement, and off-highway applications. With high electrical and mechanical endurance, versatile configurations, and compliance with UL 61058-1, this switch guarantees dependability under extreme temperatures and vibration conditions. Buy online now for fast delivery and confidence in demanding operational settings.
Get Carling STJ1E453 sealed toggle switch today—built for extreme environments and reliable performance under demanding conditions.
Frequently Asked Questions
Where can I buy Carling Technologies STJ1E453?
You can click on the BUY or RFQ button to purchase STJ1E453 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part STJ1E453?
You can download the STJ1E453 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of STJ1E453?
Carling Technologies
