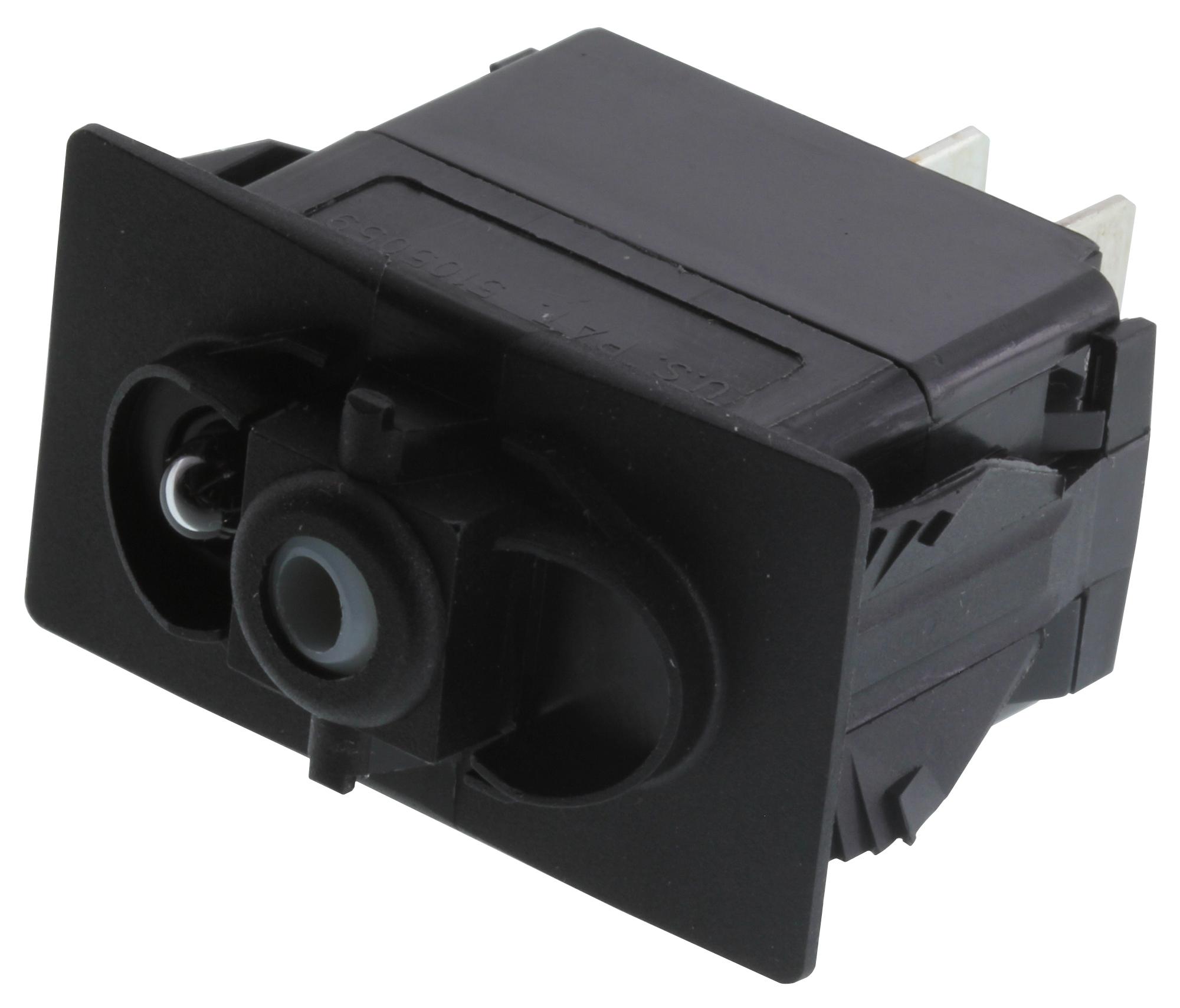

Carling Technologies V1D1B60B00000000 Sealed Rocker Switch
Sealed rocker switches with high durability, environmental sealing to IP66/68, multiple actuator styles, illumination options including LED and incandescent, and robust contact mechanisms. Designed for marine, transportation, industrial, and heavy-duty applications, these switches are tested for environmental, corrosion, vibration, shock, and sealing standards such as MIL Std 202F and UL 1500. They support up to 100,000 electrical cycles, accommodate multiple terminals, and feature interchangeable actuators and lenses for flexible customization and easy panel configuration.
Carling Technologies V1D1B60B00000000 Sealed Rocker Switch Specifications:
- Sealing: IP66/68 for above-panel components
- Contact Rating: 15A 125VAC, 10A 250VAC, 20A 14VDC, 15A 28VDC
- Electrical Cycles: Up to 100,000 cycles depending on load
- Contact Material: Silver alloy, silver tin-oxide
- Terminals: Brass or copper with silver plating; quick connect and solder lug options
- Operating Temperature: -40°C to +85°C
- Impact Resistance: MIL Std 202F, Method 204D
- Vibration: MIL Std 202F, Methods 2138 and 101D
- Dimensions: Varies by model, approx. 1.9 to 2.0 inches in height, width, and depth
- Lens Material: Polycarbonate rated at 100°C; optional lenses available
- Actuator Material: Thermoplastic polycarbonate, elastomer overlays for models II & Ill
- Mounting: Panel thickness range from 0.032 to 0.250 inches, with optional gasket seals
- Agency Certifications: UL Recognized, CSA Certified, ISO8846, IEC 60529, MIL Std 810, MIL Std 202F
- Environmental Resistance: Corrosion resistant, shock, dust, and moisture sealed
Buy the Carling Series V Sealed Rocker Switch: V1D1B60B00000000
Order the durable Carling Series V sealed rocker switch online today and ensure your industrial or marine equipment operates reliably under demanding conditions. With IP66/68 sealing, high cycle life, and versatile actuator and lens options, this switch is ideal for heavy-duty applications. Featuring easy panel mounting, multiple illumination choices, and extensive environmental testing compliance, it’s the perfect choice to enhance safety, efficiency, and system reliability in your operation. Shop now for fast delivery and support.
Buy Carling Series V Sealed Rocker Switch V1D1B60B00000000 now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy Carling Technologies V1D1B60B00000000?
You can click on the BUY or RFQ button to purchase V1D1B60B00000000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part V1D1B60B00000000?
You can download the V1D1B60B00000000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of V1D1B60B00000000?
Carling Technologies
