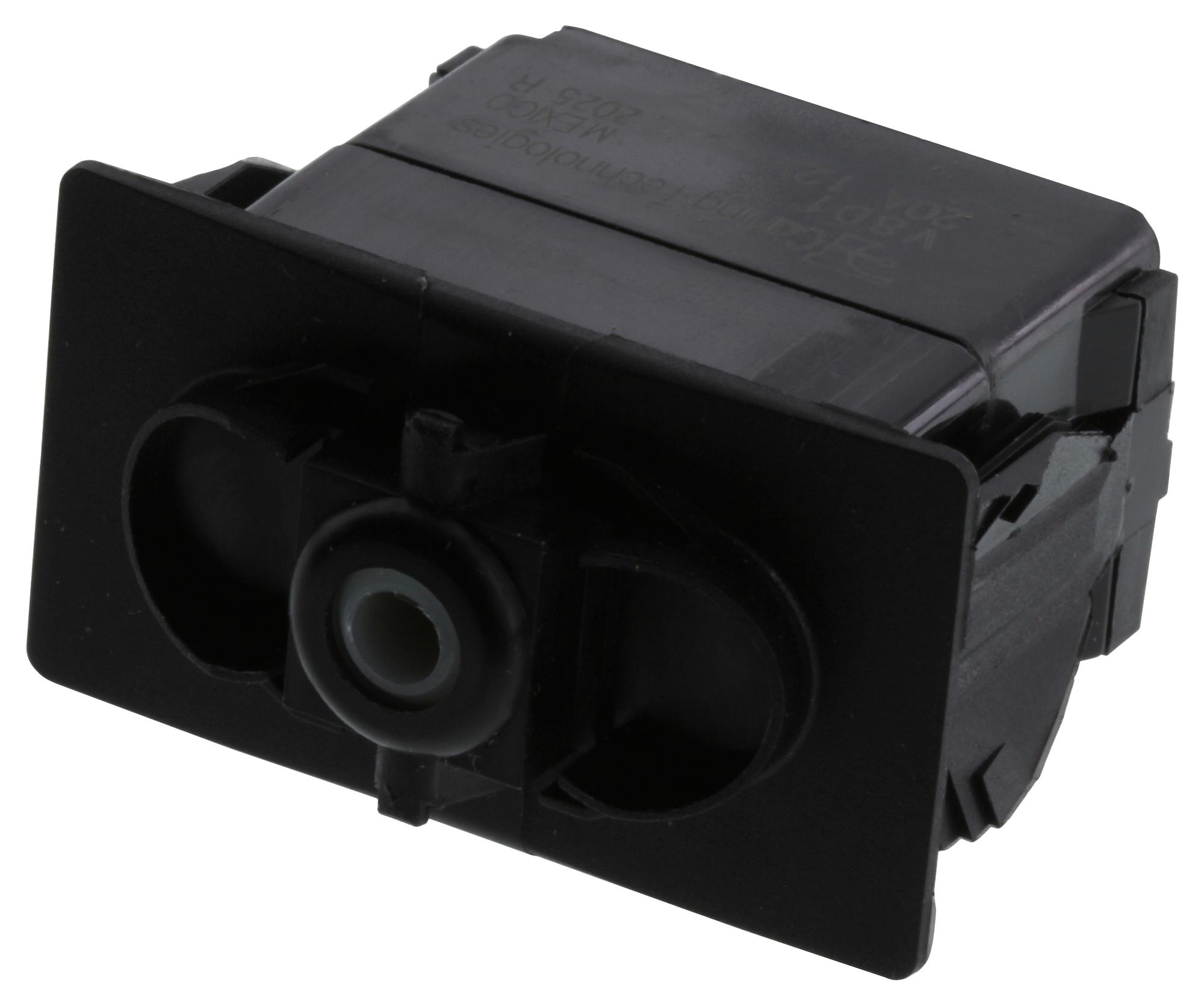

Carling Technologies V8D1S00B00000000 Sealed rocker switch
The V-Series Contura sealed rocker switches are designed for harsh environments, offering IP66/68 sealing, vibration, shock, thermoshock, moisture, and salt spray resistance. They feature removable actuators with multiple styling options, including various lenses, legends, and lock functions to customize panel designs. These switches can withstand temperatures from -40°C to +85°C, making them suitable for marine, military, and industrial applications. With high electrical ratings up to 20A and durable construction meeting UL1500 ignition protection, they provide reliable operation in demanding conditions.
Carling Technologies V8D1S00B00000000 Sealed rocker switch Specifications:
- Sealing: IP66/68 for above-panel components
- Operating Temperature Range: -40°C to +85°C
- Electrical Ratings: Up to 20A at 125VAC, 10A at 28VDC
- Contact Resistance: 10 milliohms max.
- Vibration Resistance: Mil-Std 202F, Method 204D, 1 per Mil-Std 202F
- Shock Resistance: Mil-Std 202F, Method 2138, 30G's for 3ms
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Materials: Thermoplastic polycarbonate actuator, brass or copper/silver terminals
- Lenses: Polycarbonate rated at 100°C, options for clear, white, amber, green, red, blue
- LED Illumination: Available in various colors, rated for 100,000 hours
- Actuator Travel: 18° for 2-position, 9° for 3-position switches
- Mounting Panel Thickness: 0 - 0.250 inch (0 - 6.35mm), no gasket recommended for specific thicknesses
- Certifications: UL Recognized, CSA Certified, ignition protected meeting UL1500
Buy the Carling Series V Contura Sealed Rocker Switch: V8D1S00B00000000
Order the Carling V-Series Contura sealed rocker switch online today and benefit from high-quality construction, IP66/68 sealing, and versatile styling options. Perfect for industrial, marine, and military applications, these switches support up to 20A ratings, withstand extreme temperatures, and resist vibration, shock, moisture, and salt spray. With easy panel mounting and customizable lenses and legends, they ensure dependable operation in demanding conditions. Secure your order now and enhance your equipment’s reliability and durability with genuine Carling quality.
Buy Carling V-Series Contura sealed rocker switch now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy Carling Technologies V8D1S00B00000000?
You can click on the BUY or RFQ button to purchase V8D1S00B00000000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part V8D1S00B00000000?
You can download the V8D1S00B00000000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of V8D1S00B00000000?
Carling Technologies
