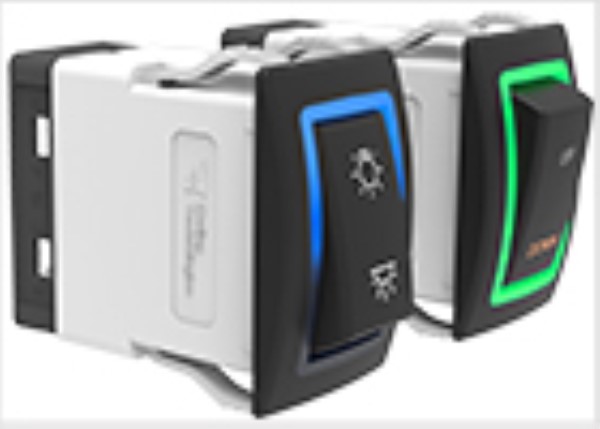

Carling Technologies VKD2UHHB00000000 Sealed Rocker Switch
Carling Technologies’ V-Series Contura switches are designed for maximum performance and unmatched reliability, particularly in the marine and transportation industries. These switches undergo rigorous testing, including MIL Std 202F and UL 1500, ensuring their durability. Key features include dual seals for IP66 certification, a silver-plated butt contact mechanism for up to 100,000 electrical cycles, and a greaseless construction for temperature extremes. The switch accommodates up to 10 terminals and offers various illumination and circuit options, making it a versatile solution for diverse applications.
Carling Technologies VKD2UHHB00000000 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4VA @ 24VDC (MAX) resistive
- Electrical: 15 amps, 125VAC; 10 amps, 250VAC; 1/2 HP 125-250VAC; 20 amps, 4-14VDC; 15 amps, 15-28VDC; 6A, 125VAC L
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4VDC
- Life: 50,000 - 100,000 cycles circuit dependent
- Contacts: Silver alloy, silver tin-oxide, fine
- Sealing: Sealed version: IP66, this rating applies to front panel components of the actual switch only
- Corrosion: applies to front panel components of the actual switch only
Buy the VKD2UHHB-00000-000 CARLING TECHNOLOGIES Sealed Rocker Switch | myMectronic
Purchase the Carling Technologies VKD2UHHB-00000-000 Sealed Rocker Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies VKD2UHHB00000000?
You can click on the BUY or RFQ button to purchase VKD2UHHB00000000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VKD2UHHB00000000?
You can download the VKD2UHHB00000000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VKD2UHHB00000000?
Carling Technologies
