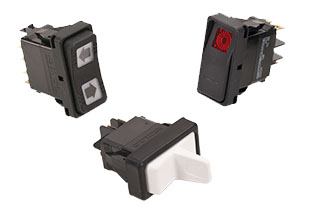

Carling Technologies VL5AS0011ZZ00000 Sealed Rocker Switch
Carling Technologies' Contura X, XI, and XII rocker switches are designed for demanding applications requiring robust sealing and reliable performance. These switches feature a raised bracket/bezel to prevent accidental actuation and are sealed to IP66/68 standards, protecting against water, dust, and debris. A wide range of actuator styles, including thermoplastic polycarbonate with nylon or elastomer overlays, allows for maximum design flexibility. Multiple lighting options, including incandescent, LED, and dual-level tri-color configurations, provide clear indication of switch status. Applications include on/off-highway vehicles, marine equipment, armored vehicles, industrial automation, and medical devices.
Carling Technologies VL5AS0011ZZ00000 Sealed Rocker Switch Specifications:
- Contact Rating: 4VA @ 24VDC (MAX) resistive
- Amps: 15 amps, 125VAC; 10 amps, 250VAC; 1/2 HP 125-250VAC; 20 amps, 4-14VDC; 6A, 125VAC L
- VDC: 12-24 VDC
- Sealing: IP66/68
- Operating Temp: -40°C to +85°C
- Insulation Resistance: 50 Megohms
- Electrical Cycles: 50k to 100k (circuit and load dependent)
- Terminals: Brass or copper/silver plate
- Quick Connect: 1/4” (6.3mm)
- Lighted Incandescent: rated 10,000 hours
- Neon: rated 25,000 hours
- LED: rated 100,000 hours
- Salt Spray: 96 Hrs
- Base Material: Polyester blend rated to 125°C with UL flammability rating of 94V0
Buy the VL5AS001-1ZZ00-000 CARLING TECHNOLOGIES Sealed Rocker Switch | myMectronic
Purchase the Carling Technologies VL5AS001-1ZZ00-000 Sealed Rocker Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies VL5AS0011ZZ00000?
You can click on the BUY or RFQ button to purchase VL5AS0011ZZ00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VL5AS0011ZZ00000?
You can download the VL5AS0011ZZ00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VL5AS0011ZZ00000?
Carling Technologies
