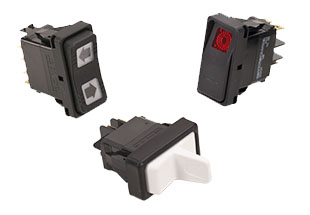

Carling Technologies VLB1S0011ZZ00000 Contura Rocker Switch
Carling Technologies' Contura X, XI, and XII rocker switches are designed for demanding applications requiring robust sealing and reliable performance. The raised bracket/bezel minimizes accidental switch activation, while the IP66/68 rating provides excellent protection against water, dust, and debris. A wide variety of actuator styles, including thermoplastic polycarbonate with nylon or elastomer overlays, and multiple lighting options cater to diverse design preferences. The switches are suitable for on/off-highway vehicles, marine applications, armored vehicles, industrial automation, and medical equipment, ensuring dependable operation in harsh environments.
Carling Technologies VLB1S0011ZZ00000 Contura Rocker Switch Specifications:
- Contact Rating: 4VA @ 24VDC (MAX) resistive
- Amps: 15 amps, 125VAC; 10 amps, 250VAC; 1/2 HP 125-250VAC; 20 amps, 4-14VDC; 6A, 125VAC
- VDC: 12-24 VDC
- Sealing: IP66/68
- Operating Temp: -40°C to +85°C
- Insulation Resistance: 50 Megohms
- Electrical Cycles: 50k to 100k
- Terminal Types: Quick Connect, Solder lug, Wire Lead
- Actuator Material: Thermoplastic Polycarbonate
- Base Material: Polyester blend rated to 125°C
- Flammability Rating: 94V0
- Vibration: Per Mil-Std 202F, Method 204D
- Shock: Per Mil-Std 202F, Method 213B
- Salt Spray: Per Mil-Std 202F, Method 101D
- Thermal Shock: Per Mil-Std 202F, Method 107F
