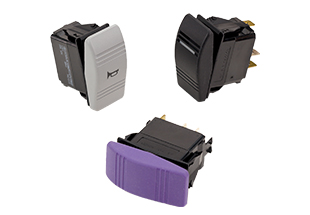

Carling Technologies VLB2UJJB755RK1RL Sealed Rocker Switch
Carling Technologies’ V-Series Contura switches are renowned for their cutting-edge design, high quality, and unmatched reliability. These switches are widely used in the marine and transportation industries and are rigorously tested to meet various environmental and industry standards. They offer maximum sealing protection, a wide range of lighting options, and a flexible design that accommodates diverse panel thicknesses and circuit configurations. The switches are designed for durability and ease of use, making them a staple in demanding applications.
Carling Technologies VLB2UJJB755RK1RL Sealed Rocker Switch Specifications:
- Maximum Sealing Protection: Dual seals around lamps and rocker stem certified to IP66 & IP68
- Electrical Cycles: 50 to 100 thousand
- Temperature Withstand: Extreme temperatures
- Mounting Fit: 0.032” thru 0.250” panel thicknesses
- Mounting Hole: 0.830” x 1.450”
- Terminal Options: Up to 10 terminals
- Connector Type: AMP & Packard compatible
- Contact Rating: 4VA @ 28VDC (MAX) resistive
- Current Rating: 15 amps, 125VAC; 10 amps, 250VAC; 1/2 HP 125-250VAC; 20 amps, 4-14VDC
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Contact Resistance: 10 milliohms max. @ 4VDC
- Life: 50,000- 100,000 cycles circuit
- Environmental Rating: Sealed version: IP68
Buy the VLB2UJJB-755RK-1RL CARLING TECHNOLOGIES Sealed Rocker Switch | myMectronic
Purchase the CARLING TECHNOLOGIES VLB2UJJB-755RK-1RL Sealed Rocker Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies VLB2UJJB755RK1RL?
You can click on the BUY or RFQ button to purchase VLB2UJJB755RK1RL from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VLB2UJJB755RK1RL?
You can download the VLB2UJJB755RK1RL datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VLB2UJJB755RK1RL?
Carling Technologies
