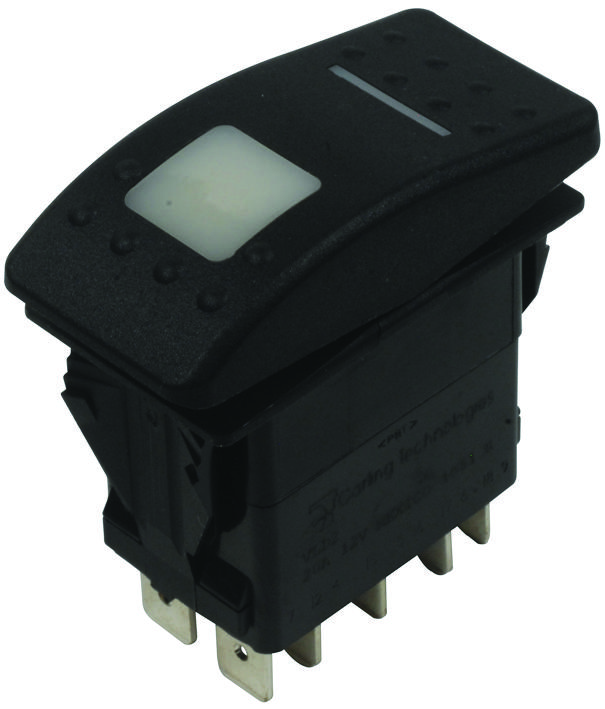

Carling Technologies VLD2UHNBAAC00000 Sealed Rocker Switch
The VLD2UHNB-AAC00-000 is a double-pole black rocker switch featuring 0.250-inch tab terminals and a panel-seal black flush bracket. Constructed with a thermoplastic polycarbonate actuator, available in hard nylon or soft-touch elastomer overlays, it includes raised bumps for aesthetic appeal. It operates with ON-OFF-ON functionality and offers sealed protection (IP66/IP68), resistant to dust, water spray, pressure submersion, vibration, shock, temperature extremes, moisture, and salt spray. UL1500 rated for ignition protection in marine environments, suitable for military, aerospace, industrial, and defense applications. It accommodates up to 10 terminals and allows preloaded terminal assembly for convenience, with a minimum insulation resistance of 50 megaohms.
Carling Technologies VLD2UHNBAAC00000 Sealed Rocker Switch Specifications:
- Contact Rating: 15A 125VAC resistive, 10A 250VAC resistive, 1/2 HP 125-250VAC, 20A 4-14VDC, 15A 15-28VDC, 10A 14V, 6A 125VAC L
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megaohms
- Minimum Contact Resistance: 10 milliohms
- Cycle Life: 50,000 - 100,000 cycles depending on circuit
- Actuator Material: Thermoplastic polycarbonate, with optional hard nylon or elastomer overlays
- Actuator Style: Raised bumps on top and bottom for aesthetic design
- Seal Ratings: IP66/IP68 for front panel components
- Environmental Resistance: Vibration, shock, temperature extremes (-40°C to +85°C), moisture, salt spray
- Base Terminals: Up to 10, solder lug, wire lead, or quick connect; 0.250-inch tab terminals
- Connector: Pre-wiring option available for terminal loading
- Approvals: UL1500 ignition protection, marine certification, compliant with IEC 60092-201 standards
Buy the Carling Series Sealed Switch: V-Series VLD2UHNB-AAC00-000
Order the Carling VLD2UHNB-AAC00-000 Sealed Rocker Switch online today. Engineered for reliability with IP66/IP68 sealing, UL ignition protection, and resistance to shock, vibration, and extreme temperatures. This double-pole switch features 0.250-inch tab terminals, a panel-seal black flush bracket, and a durable thermoplastic actuator with optional nylon or elastomer overlays. Its robust design ensures long-lasting performance in marine, military, aerospace, and industrial applications. Pre-wired options facilitate quick assembly, making it a perfect choice for challenging environments requiring sealed, high-reliability switches.
Get Carling VLD2UHNB-AAC00-000 today—built for durability and precise control in demanding environments.
Frequently Asked Questions
Where can I buy Carling Technologies VLD2UHNBAAC00000?
You can click on the BUY or RFQ button to purchase VLD2UHNBAAC00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VLD2UHNBAAC00000?
You can download the VLD2UHNBAAC00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VLD2UHNBAAC00000?
Carling Technologies
