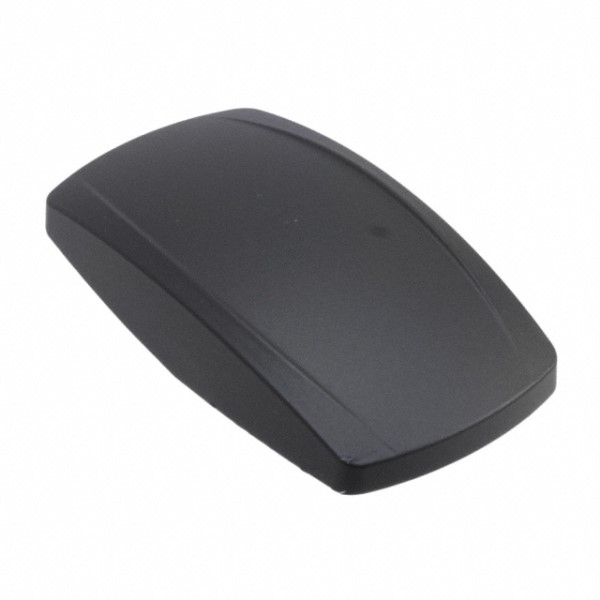

Carling Technologies VVPZC00000 Sealed Rocker Switch
Carling Technologies’ V-Series Contura switches are designed for demanding environments, commonly used in marine, transportation, and industrial applications. These switches undergo rigorous testing, including MIL Std 202F and UL 1500, ensuring exceptional performance and durability. Features include dual seals for IP66 protection, silver-plated butt contacts for long electrical life, and a greaseless construction for temperature extremes. The switch accommodates up to 10 terminals and offers numerous illumination and circuit options, making it a versatile solution for various applications.
Carling Technologies VVPZC00000 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4VA @ 24VDC (MAX) resistive
- Electrical: 15 amps, 125VAC; 10 amps, 250VAC; 1/2 HP 125-250VAC; 20 amps, 4-14VDC; 15 amps, 15-28VDC; 6A, 125VAC L
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Initial Contact Resistance: 10 milliohms max. @ 4VDC
- Life: 50,000 - 100,000 cycles circuit dependent
- Contacts: Silver alloy, silver tin-oxide
- Sealing: Sealed version: IP66 (applies to front panel components)
- Corrosion: applies to front panel components
Buy the VVPZC00-000 CARLING TECHNOLOGIES Sealed Rocker Switch | myMectronic
Purchase the Carling Technologies VVPZC00-000 Sealed Rocker Switch securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies VVPZC00000?
You can click on the BUY or RFQ button to purchase VVPZC00000 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part VVPZC00000?
You can download the VVPZC00000 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of VVPZC00000?
Carling Technologies
