COTO TECHNOLOGY 90110510 Miniature SIP Reed Relay
The 9011 series Miniature Moulded SIP Reed Relay is a compact and space-efficient relay, offering 65% less board space compared to standard 9000 series SIP relays. It features magnetic shielding to reduce interaction between components, an optional coil suppression diode for coil circuit protection, and high-speed switching capabilities. The relay has a moulded thermoset body on an integrated lead frame, ensuring high reliability and long service life with hermetically sealed contacts. It is a 3W SIP relay with a minimum insulation resistance of 10¹² ohms, making it suitable for industrial, test and measurement, and communications and networking applications.
COTO TECHNOLOGY 90110510 Miniature SIP Reed Relay Specifications:
- Type: Miniature SIP reed relay
- Power Rating: 3W
- Dimensions: 0.400” x 0.150” x 0.265” (9011)
- Dimensions: 0.400” x 0.150” x 0.400” (9012)
- Dimensions: 0.270” x 0.150” x 0.385” (9117)
- Magnetic shielding reduces interaction
- Optional coil suppression diode available
- Insulation Resistance: minimum 10¹² ohms
- Contact Sealing: Hermetically sealed contacts
- Vibration: 20 G's to 2000 Hz
- Shock: 50 G’s
- Operating Temp: -20°C to +85°C
- Storage Temp: -35°C to +100°C
- Solder Temp: 270°C max, 10 sec
- Dielectric Strength: 200 VDC/peak AC between contacts, 1500 VDC/peak AC contact to coil
- Operate Time: approximately 0.2 to 0.35 msec
- Release Time: approximately 0 msec

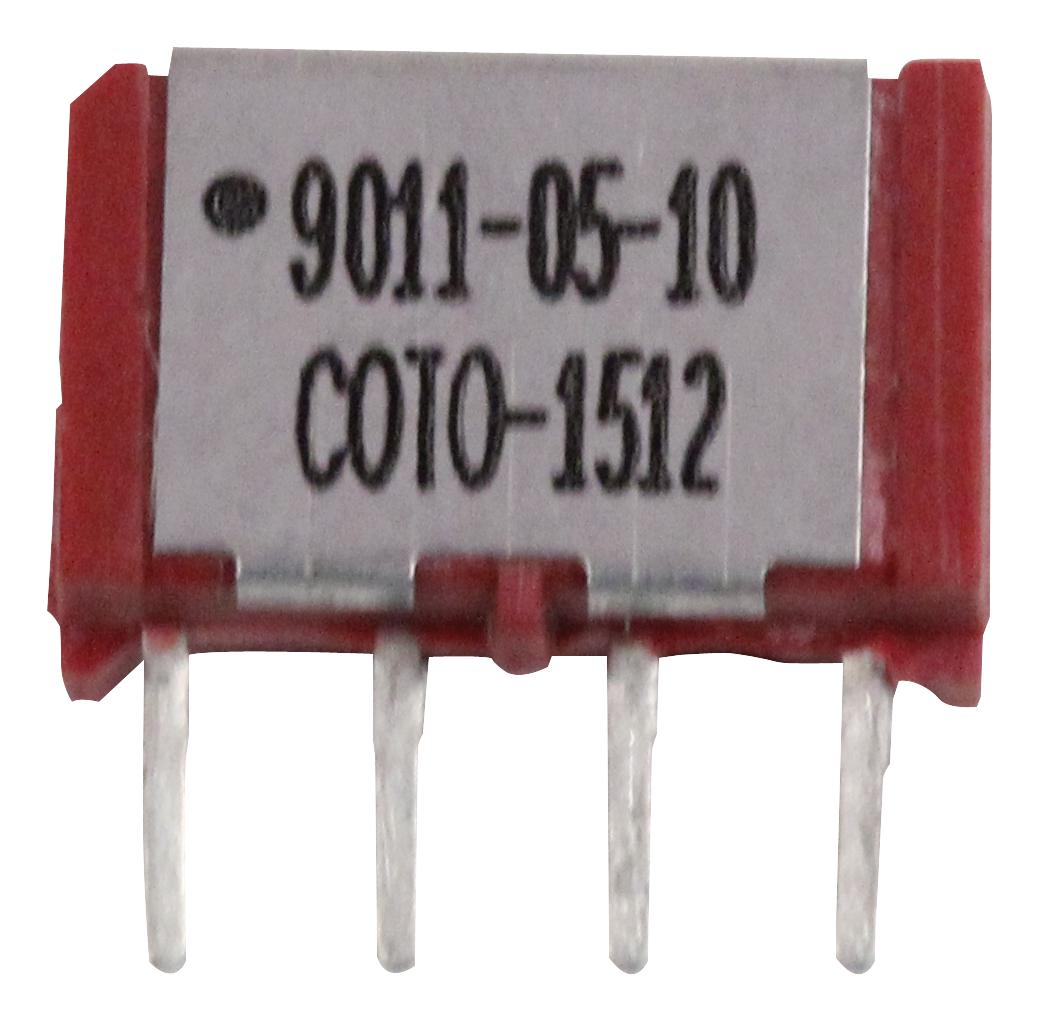

Buy the Buy Coto Technology SIP Relay Part Number 90110510 Online
Buy the Coto Technology miniature SIP reed relay 90110510 online today for space-efficient installation, high-speed switching, hermetically sealed contacts, and long-term durability. Perfect for high-density applications in industrial, measurement, and telecommunications systems. This relay’s compact size maximizes PCB space while maintaining excellent insulation resistance and electrical performance. With optional coil suppression diode and rugged thermoset body, it offers reliable operation and long service life in demanding environments. Order now to experience top-tier quality and performance for your project.
Get Coto Technology 90110510 today—optimized for space-saving design, high reliability, and long-lasting performance in industrial and telecom applications.
