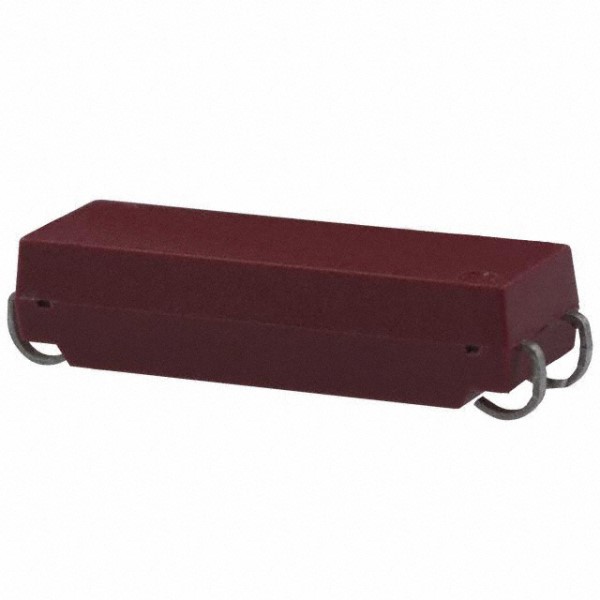

COTO TECHNOLOGY 92011220TR Surface Mount Reed Relay
The COTO TECHNOLOGY 9201-12-20TR is a surface mount reed relay ideally suited for applications requiring high reliability and fast switching speeds, such as automated test equipment, instrumentation, and telecommunications. It boasts a molded thermoset body on an integral lead frame design, ensuring robust performance. Key features include high insulation resistance, hermetically sealed contacts for extended lifespan, and a low profile design suitable for high-density circuit boards. The relay is RoHS compliant and available in tape and reel packaging for automated assembly.
COTO TECHNOLOGY 92011220TR Surface Mount Reed Relay Specifications:
- Coil Voltage: 12VDC
- Coil Resistance: 250Ω
- Operate Voltage: 3.75VDC
- Release Voltage: 0.4VDC
- Switching Voltage Max DC/Peak AC: 200V
- Switching Current Max DC/Peak AC: 0.5A
- Carry Current Max DC/Peak AC: 1.5A
- Contact Rating Max DC/Peak AC Watts: 10W
- Insulation Resistance: 10x10^12 Ω
- Capacitance Across Open Contacts: 0.7pF
- Dielectric Strength Contacts/Shield to Coil: 1500VDC
- Operate Time: 0.40msec
- Release Time: 0.10msec
- Storage Temperature: -35°C to 100°C
- Operating Temperature: -20°C to 85°C
Buy the 9201-12-20TR COTO TECHNOLOGY Surface Mount Reed Relay | myMectronic
Purchase the COTO TECHNOLOGY 9201-12-20TR Surface Mount Reed Relay securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy COTO TECHNOLOGY 92011220TR?
You can click on the BUY or RFQ button to purchase 92011220TR from an authorized COTO TECHNOLOGY distributor.
How do I troubleshoot issues or seek technical support for part 92011220TR?
You can download the 92011220TR datasheet or visit the COTO TECHNOLOGY website for support.
Who is the manufacturer of 92011220TR?
COTO TECHNOLOGY
