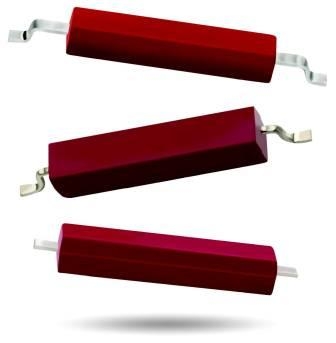

COTO TECHNOLOGY CT101030G1 Encapsulated Molded Switch
The COTO TECHNOLOGY CT10 series represents an encapsulated molded dry reed switch, offering a robust and reliable solution for a wide range of applications. This SPST switch utilizes ruthenium contacts and is designed for surface mount device (SMD) mounting, making it ideal for automated assembly processes. The rugged encapsulation provides excellent protection against environmental factors, ensuring long-term reliability. Applications include proximity sensing, security alarm sensors, level sensing, flow sensing, and pulse counting. The CT10-1030-G1 variant, specifically, offers a sensitivity range from 10 to 30AT with a Gull Wing Version 1 lead configuration (16.4mm).
COTO TECHNOLOGY CT101030G1 Encapsulated Molded Switch Specifications:
- Operate Range: 10-40
- Release Range: 3-35
- Switched Power (max): 10W
- Switched Voltage DC (max): 200V
- Switched Voltage AC (max): 140V
- Switched Current DC (max): 500mA
- Switched Current AC (max): 500mA
- Carry Current DC (max): 0.5A
- Breakdown Voltage (min): 230V
- Contact Resistance (initial max): 200 mΩ
- Insulation Resistance (min): 10 MΩ
- Storage Temperature: -40 to +125 ºC
- Operating Temperature: -40 to +125 ºC
- Vibration Temperature: 10 G
- Shock Resistance: 100 G
- Processing Temperature (G1 & G2): 500°F (260°C) for 1 minute
- Processing Temperature (G4 & A2): 439°F (226°C) for 1 minute
- AT Values Measured Using: Philips 10JK coil
