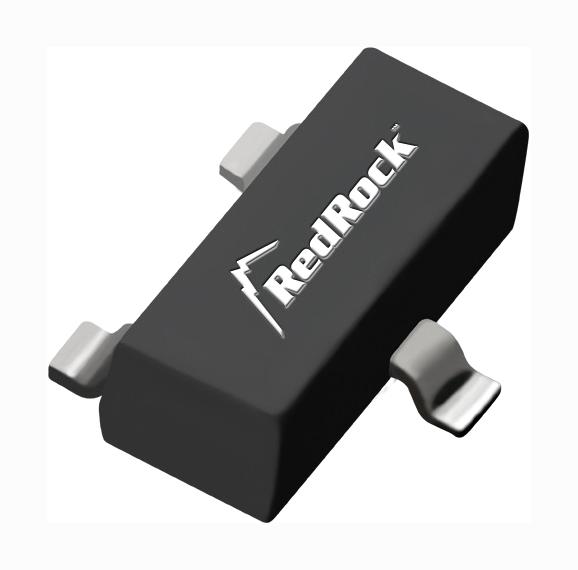

COTO TECHNOLOGY RR1222B22511 Magnetic Sensor
The RedRock RR122-2B22-511 and RR122-2B23-511 are highly efficient digital magnetic sensors utilizing patented Tunneling Magnetoresistance technology with CMOS integration. Designed for medical, industrial, automotive, and consumer applications, they feature a unipolar magnetic field response with operate sensitivities of 30 G, suitable for proximity, rotary, and fluid level detection. Capable of functioning in temperatures from -40°C to +125°C, they draw less than 100nA current at 10 Hz, making them ideal for battery-powered devices and industrial machinery with wide voltage ranges from 1.7V to 5.5V. Their small footprint and RoHS compliance make them versatile for various embedded sensor systems.
COTO TECHNOLOGY RR1222B22511 Magnetic Sensor Specifications:
- Operate temperature: RR122-2B22-511: -40°C to +85°C, RR122-2B23-511: -40°C to +125°C
- Storage temperature: -55°C to +150°C
- Soldering temperature: +260°C (3 cycles, 1 min.)
- Supply voltage: 1.7V to 5.5V
- Peak supply current: 14 mA during power-on
- Average supply current: 100nA at V=1.7V, 10Hz; 135nA at V=3.0V, 10Hz
- Magnetic sensitivity: 30 G (±20 G), unipolar response
- Switching frequency: 6-14 Hz
- Output type: Digital push-pull, active low
- Package: SOT-23-3, 2.9x1.6x1.2 mm
- ESD protection: Human Body Model ±4000V, Charged Device Model ±500V
- Junction-to-ambient thermal resistance: 202°C/W
- RoHS and REACH compliant
Buy the Coto Sensor RR122-2B22-511 – Reliable Magnetic Sensor for Industrial Applications
Purchase the Coto Magnetic Sensor RR122-2B22-511 online now to accelerate your project development. This compact, low-power unipolar TMR sensor ensures reliable proximity, rotary, and fluid detection in harsh environments. With a wide temperature range up to 125°C, minimal power draw, and RoHS compliance, it’s ideal for wearable medical devices, industrial machinery, and automotive systems. Order today and benefit from fast delivery, quality assurance, and support for your electronic sensing needs. Elevate your system’s performance with this high-sensitivity magnetic sensor.
Get Coto Sensor RR122-2B22-511 today—built for precision magnetic detection in industrial, automotive, and medical systems.
