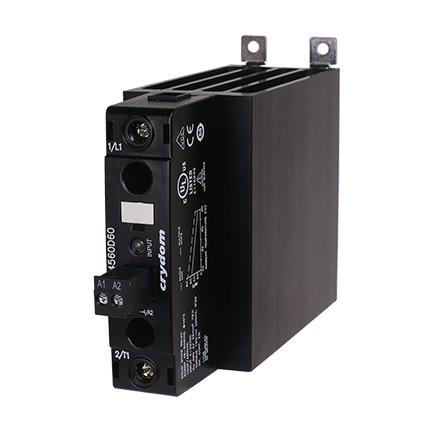

Crydom DR4560D45 Solid State Relay
The Crydom DR4560D45 is a powerful and compact solid state relay designed for DIN rail mounting. It offers a 4-32VDC control voltage and a 45A output rating, making it suitable for demanding applications in heating, motion, and lighting control. The relay's high I²t capability, optional overvoltage protection, and large cage clamp terminals simplify installation and reduce costs. It's a robust solution for industrial automation and control systems, providing reliable switching performance with easy wiring and mounting options.
Crydom DR4560D45 Solid State Relay Specifications:
- Control Voltage: 4-32 VDC
- Output Current: 45A
- Operating Voltage: 48-600 VAC
- Transient Overvoltage: 1200 Vpk
- Leakage Current: 1 mARMS
- dV/dt: 500 V/μsec
- Load Current (General Use): 45 ARMS
- Load Current (Motor Starting): 14/7.6 ARMS
- Minimum Load Current: 100 mARMS
- Surge Current: 716/750 Apk
- Voltage Drop: 1.25 VRMS
- I²t: 2563/2343 A²sec
- Power Dissipation: 52 W
- Power Factor: 0.5
- Motor Rating (120 VAC): 1 HP (0.74 kW)
- Motor Rating (240 VAC): 3 HP (2.2 kW)
- Motor Rating (480 VAC): 5 HP (3.7 kW)
- Input Impedance: Current Limited
- Turn-On Time: 1/2 Cycle
- Turn-Off Time: 1/2 Cycle
- Dielectric Strength (Input to Output): 4000 VRMS
- Insulation Resistance: 109 Ohms
- Capacitance (Input/Output): 8pF
- Operating Temperature: -40 to 80°C
- Storage Temperature: -40 to 100°C
- Short Circuit Current Rating: 100kA
- Housing Material: UL94 V-0
- Heat Sink Material: Aluminum
- Weight: 17.63 oz (500 g)
