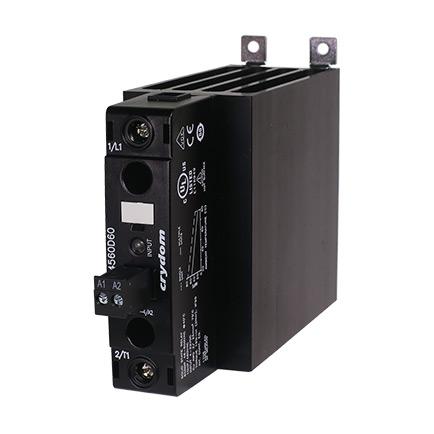

Crydom DR4560D45P Solid State Relay
The Crydom DR4560D45P is a powerful and compact solid state relay designed for DIN rail mounting. It offers a 45A output rating at 40°C and features a 4-32VDC control voltage, providing flexibility in control circuit design. The built-in overvoltage protection enhances reliability, while the large cage clamp terminals simplify wiring and reduce installation time. This SSR is suitable for demanding applications in plastic injection molding, packaging, industrial ovens, lighting control, pump control, conveyor drives, HVAC&R, and railway vehicles.
Crydom DR4560D45P Solid State Relay Specifications:
- Control Voltage: 4-32 VDC
- Output Current (45A): 45 Amps
- Output Current (60A): 60 Amps
- Operating Voltage: 48-600 VAC
- Transient Overvoltage: 1200 Vpk
- Leakage Current: 1 mARMS
- dV/dt: 500 V/μsec
- Load Current (General Use): 45 ARMS
- Load Current (Motor Starting): 14/7.6 ARMS
- Minimum Load Current: 100 mARMS
- Surge Current (50/60Hz): 716/750 Apk
- Voltage Drop: 1.25 VRMS
- I²t: 2563/2343 A²sec
- Power Dissipation: 52 W
- Power Factor: 0.5
- Motor Rating (120 VAC): 1 HP (0.74 kW)
- Motor Rating (240 VAC): 3 HP (2.2 kW)
- Motor Rating (480 VAC): 5 HP (3.7 kW)
- Dielectric Strength (Input to Output): 4000 VRMS
- Insulation Resistance: 109 Ohms
- Capacitance (Input/Output): 8 pF
- Operating Temperature: -40 to 80°C
- Storage Temperature: -40 to 100°C
- Short Circuit Current Rating: 100kA
- Weight: 17.63 oz (500 g)
- Housing Material: UL94 V-0
- Mounting: DIN Rail or Panel
