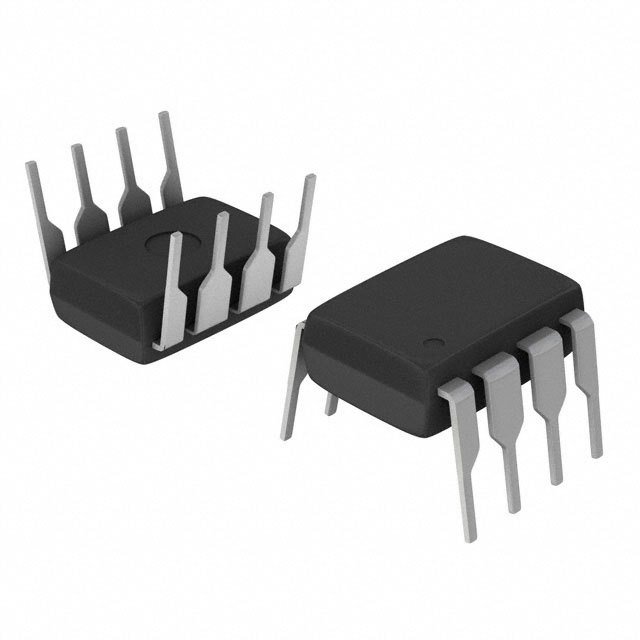

Crydom G2AB01ST Solid State Relay
The Crydom G2-AB01-ST is a compact, 1A/1B solid state relay ideal for applications requiring reliable DC switching. It offers low input drive current requirements, reducing power consumption and simplifying circuit design. The G2 series is known for its robustness and suitability for a wide range of industrial control applications, including lighting, power distribution, and process control. Its compact size allows for easy integration into space-constrained environments.
Crydom G2AB01ST Solid State Relay Specifications:
- LED Forward Current - Turn on: 5.0 mADC (Max)
- LED Forward Current - Turn off: 0.1 mADC (Min)
- Recommended Forward Current: 10-30 mADC
- LED Forward Voltage: 1.1-1.4 VDC
- Maximum Input Ratings - LED Forward Current: 50 mADC
- LED Reverse Voltage Withstand: 10 VDC
- Switching Voltage: 400 V PEAK (Max)
- Switching Current: 150 mA (Max)
- Current Limit N.O. Channel Only: 380 mA (Typ)
- On Resistance: 24 W (Max)
- Off State Resistance N.O. Channel: 0.5 GW (Min)
- Off State Resistance N.C. Channel: 0.5 GW (Min)
- Off State Leakage N.O. Channel: 200 nA (Max)
- Off State Leakage N.C. Channel: 0.17 mA (Max)
- Turn On Time: 5.0 ms (Max)
- Turn Off Time: 1.0 ms (Max)
- Thermal Offset Voltage: 0.2 mV (Typ)
- Dielectric Strength - Input to Output: 3750 VRMS (Min)
- Capacitance - Input to Output: 1.2 pF (Typ)
- Power Dissipation: 600 mW (Max)
Buy the G2-AB01-ST Crydom Solid State Relay | myMectronic
Purchase the Crydom G2-AB01-ST Solid State Relay securely and conveniently online.
Buy Now
