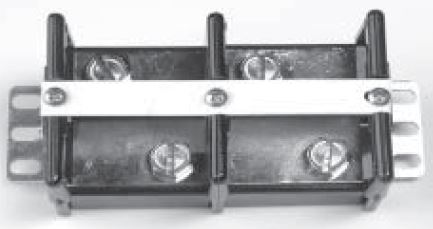

Curtis Industries O3 Terminal Blocks Series L O S
Curtis Industries O-3 terminal blocks are designed for machine, switchboard, and other heavy-load terminations. They provide flexibility with readily adaptable designs for branch circuit termination. The blocks can be combined with each other and with Types H and BT, offering versatile solutions for various industrial applications. Available in series L, O, and S, each series caters to different current and wire size requirements, ensuring compatibility with a wide range of electrical systems. Recognized under UL and CSA standards, these terminal blocks guarantee reliability and safety in demanding environments.
Curtis Industries O3 Terminal Blocks Series L O S Specifications:
- Ratings and Wire Sizes: Type L: 100A/600V, UL recognized for wire up to No. 1AWG. Type O: 125A/600V, UL recognized for wire up to No. 1/0AWG. Type S: 225A/600V, UL recognized for wire up to No. 4/0AWG.
- Recognition and Listing: UL recognized and CSA certified
- Terminal Bar Material (L, O, S): Nickel-plated brass
- Screws (L): 1/4" – 20 plated round-head steel screws
- Screws (O): 5/16" – 18 plated slotted hex-head steel screws
- Screws (S): 3/8" plated hex-head steel screws
- Wire Range (L): UL Recognized for No. 1AWG
- Wire Range (O): UL Recognized for No. 1/0AWG
- Wire Range (S): UL Recognized for No. 4/0AWG
- No. of Terminals (L): 1 thru 12
- No. of Terminals (O): 1 thru 4
- No. of Terminals (S): 1 thru 4
- Voltage Rating: 600V CSA and UL
- Tightening Torque (L): 50 in.-lb.
- Tightening Torque (O): 50 in.-lb.
- Tightening Torque (S): 200 in.-lb.
- Current Rating (L): 100A
- Current Rating (O): 125A
- Current Rating (S): 225A
- Housing Material: Phenolic
- Continuous Use Temp.: 150°C (302°F)
- Flammability Rating: 94V-1
- Water Absorption: 0.5% wt. gain
- Chemical Resistance: Resistant to most organic solvents
- Breakdown Voltage (Terminal-Terminal): 11,000V Typ.
- Breakdown Voltage (Terminal-Ground): 9,700V Typ.
