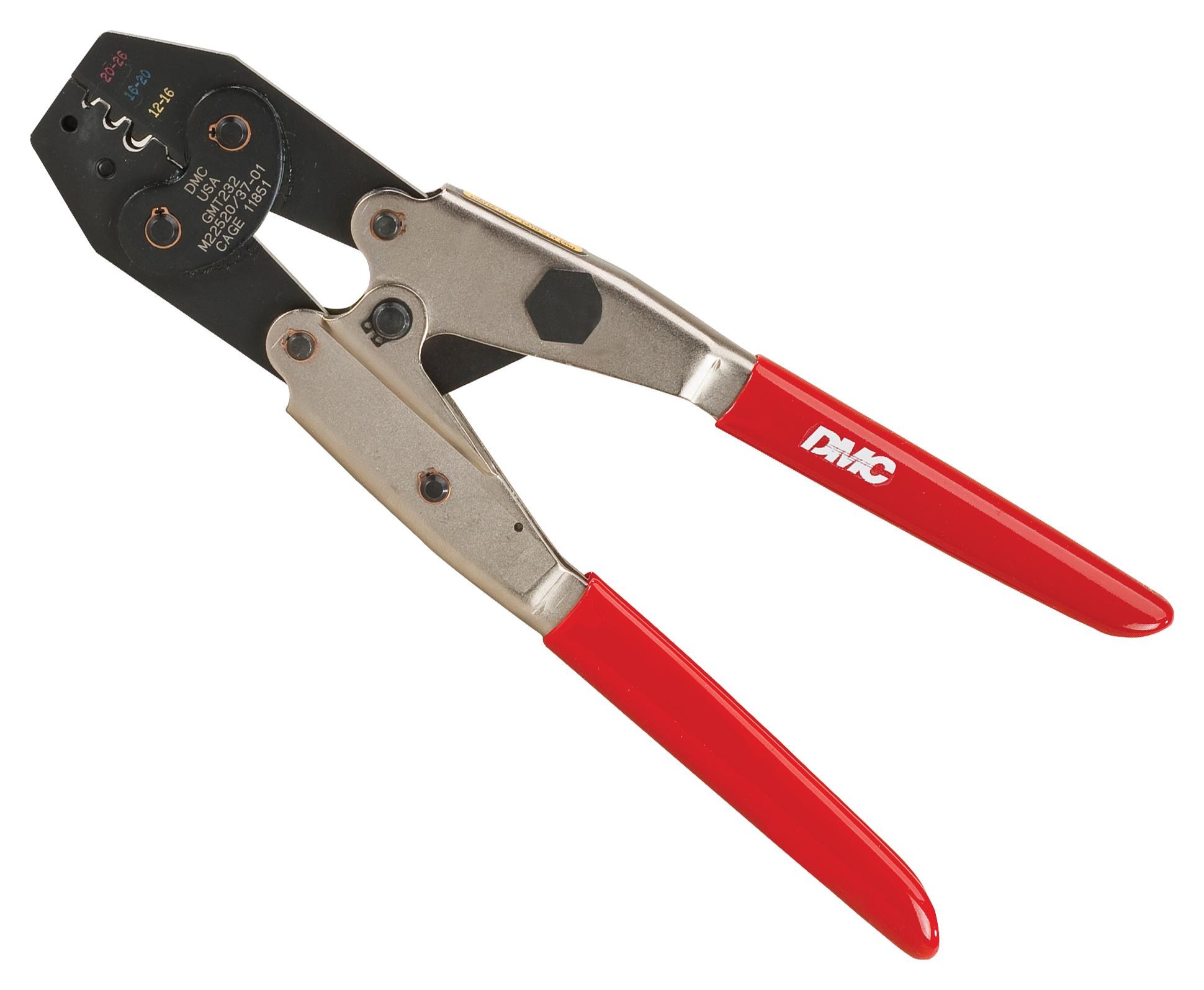

DANIELS M225203701 Wire Crimping Tool
The M22520/37-01 is a hand crimp tool designed for use with 26 to 12 AWG wire splices. It complies with MIL-S-81824 standards and features ratchet adjustment. The tool applies a minimum compression force of 40 lbs when the handles are pressed approximately 1.25 inches from the end. The jaws completely close with the ratchet mechanism releasing only after proper compression, ensuring reliable terminations. Additionally, a 'Go' gauge should fit between the indenter and cavity when the jaws are fully closed, while a 'No-Go' gauge should not fit, confirming correct crimp quality. This tool is suitable for maintenance and repair applications.
DANIELS M225203701 Wire Crimping Tool Specifications:
- Applicable wire sizes: 12-16 AWG, 16-20 AWG, 20-26 AWG
- Jaw closing force: minimum 40 lbs
- Handle to jaw distance: approximately 1.25 inches from handle end
- Crimp cavity dimensions: 12-16 AWG: .0620 (Go), .0720 (No-Go); 16-20 AWG: .0420 (Go), .0520 (No-Go); 20-26 AWG: .0250 (Go), .0350 (No-Go)
- Ratchet mechanism ensures complete compression before releasing
- Tool requires calibration to ensure proper crimping
- Material: hardened steel jaws, insulated handle grips
- Standards met: MIL-S-81824
- Maintenance: clean, lubricate pivot points, and inspect die areas regularly
- Gaging: uses M22520/39-01 (DMC G411) Go/No-Go gages for proper crimp verification
- Durability: designed for repeated use in maintenance and repair environments
