DELKIN-DEVICES SE08FQYJR3B0003 Industrial Storage Card
Delkin Devices offers rugged industrial-grade pSLC SD and microSD cards designed for high reliability and performance across various applications. These cards feature exceptional endurance, with up to 20,000 P/E cycles, and operate in temperatures from -25°C to +85°C, with some models supporting -40°C. They support SD 3.0, Class 10, UHS-I, and include sophisticated wear leveling, ECC, SMART reporting, and error correction for lasting performance. Ideal for industrial, medical, transportation, and OEM applications needing controlled, cost-effective storage solutions.
DELKIN-DEVICES SE08FQYJR3B0003 Industrial Storage Card Specifications:
- Interface: SD 3.0, Class 10, UHS-I
- Connector: Standard SD 9 pin, microSD 8 pin
- Outline Dimensions: 32 x 24 x 2.1 mm (SD), 41 x 15 x 1 mm (microSD)
- Flash Type: pSLC
- Density Range: 4GB-32GB (SDHC), 8GB-32GB (microSDHC)
- Data Retention: 5-10 years, up to 10% of P/E cycles
- Endurance: 20,000 P/E cycles
- Operating Temperature: -25°C to +85°C; -40°C to +85°C (some models)
- Storage Temperature: -40°C to +85°C
- Performance: Up to 95 MB/s sequential read, up to 85 MB/s sequential write
- MTBF: 3,000,000 hours
- Shock Resistance: 1,500 G for 0.5 ms
- Vibration: 80Hz-2000Hz, 20G
- Humidity: 95% RH at 40°C
- Voltage: 2.7–3.6 V
- Power Consumption: Read <400 mA, Write <400 mA, Idle <1,000 uA
- Features: Wear Leveling, ECC, SMART data reporting, Auto-Read Refresh

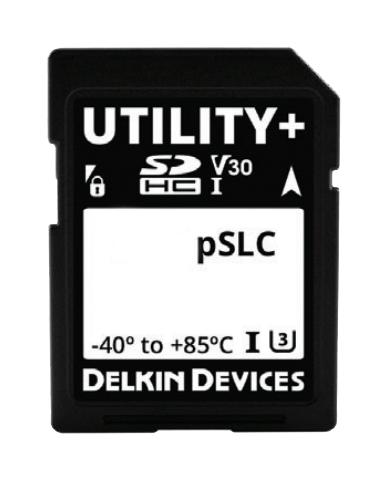

Buy the Delkin Series Utility pSLC SD: SE08FQYJR3B0003
Experience the superior durability and reliability of Delkin Devices industrial-grade pSLC SD and microSD cards. Designed for demanding environments, these cards support temperature ranges from -40°C to +85°C and provide up to 20,000 P/E cycles for extended service life. Their advanced wear leveling, ECC, and SMART reporting ensure consistent, error-free performance in medical, transportation, and industrial OEM applications. Purchase online today to secure high-capacity, rugged storage solutions engineered for your critical needs.
Get Delkin Devices SE08FQYJR3B0003 today—built for robustness, reliability, and industrial-grade endurance.
