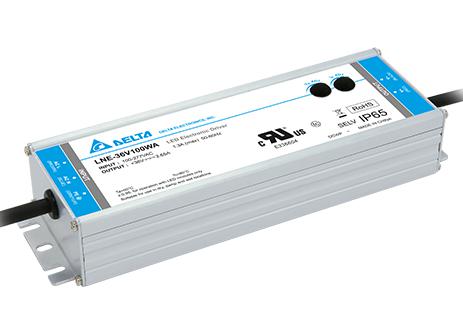

DELTA ELECTRONICS / POWER LNE36V100WAAA LED Driver
The Delta LNE series 36V LED driver is designed for efficient indoor and outdoor lighting applications. It features adjustable output voltage and current, built-in dimming options, and robust surge immunity with 6kV common mode and 4kV differential mode protection. Encased in corrosion-resistant aluminum, it supports IP65/IP67 ratings for outdoor use, complying with international safety and EMC standards. With high efficiency up to 93%, a long MTBF exceeding 700,000 hours, and comprehensive protections including overload, short circuit, overvoltage, and over temperature, this driver ensures reliable LED operation in various environments.
DELTA ELECTRONICS / POWER LNE36V100WAAA LED Driver Specifications:
- Input Voltage Range: 90-305Vac / 100-264Vac
- Input Frequency: 50-60Hz
- Efficiency at 100% Load: up to 93%
- Surge Immunity: 6kV common mode, 4kV differential
- IP Ratings: IP65, IP67
- Dimensions: 220 x 68 x 38.8 mm
- Unit Weight: 0.98 kg
- MTBF: over 700,000 hours
- Operating Temperature: -40°C to +70°C
- Output Voltage Range: 33.0-40.0V
- Output Current Range: 1.325-2.65A
- Output Power: 95.4W
- Protections: Overload, Short Circuit, Overvoltage, Over Temperature
- Certifications: UL, ENEC, CE, KC, PSE
- Compliance: EN55015, EN61547, FCC Class B, IEC/EN 61000-3-2
- Galvanic Isolation: Input to Output 3.85kVac
Buy the Delta Series 36V LED Driver: LNE36V100WAAA
Experience reliable illumination with the Delta 36V LED driver, designed for indoor and outdoor lighting with adjustable output, high surge immunity, IP65/IP67 ratings, and over 700,000 hours MTBF. It provides efficient power conversion up to 93%, supporting comprehensive safety and EMC standards. Perfect for energy-efficient LED systems, it offers seamless dimming, robust protections, and easy installation, ensuring durable performance in diverse environments. Purchase online today for a dependable lighting power solution that meets all safety and quality expectations.
Get Delta 36V LED Driver today—built for precision and long-lasting durability in outdoor and indoor lighting projects.
