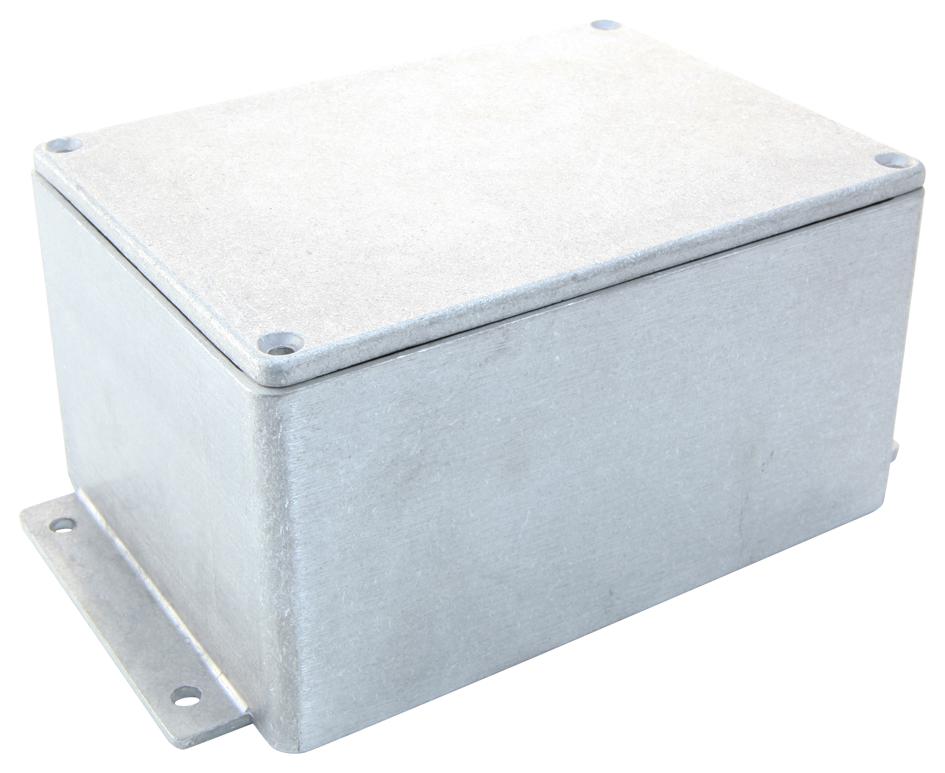

DELTRON ENCLOSURES 4830100 General Purpose Enclosure
This IP54 general purpose enclosure is manufactured from ADC12 aluminium, offering protection against dust and low pressure water spray. Available in 15 sizes, some with flanges for easy mounting, it features captive screws, earth screws, and PCB guides. It can be customized in the UK factory with machining, painting, and components sourcing. Suitable for remote control systems, keyboards, display boards, and radiolocation, the enclosure is finished with plain aluminium, powder, or nylon coating, and can be painted in grey, blue, or black. Certified to BS EN 60529:1992, RoHS compliant, and IP54 rated for dust and water resistance.
DELTRON ENCLOSURES 4830100 General Purpose Enclosure Specifications:
- Material: ADC12 aluminium alloy
- IP Rating: IP54 rated for dust and water spray resistance
- Available Sizes: 89 x 35 x 30 mm to 275 x 175 x 65 mm
- Wall Thickness: Minimum 1.5 mm
- Lid Thickness: Minimum 1.5 mm
- Finish Options: Plain aluminium, powder coat, nylon coat
- Screws: Stainless steel
- Water Resistance: Tested IP68 for 5 metres, IP66 and IP68 options available
- Features: Captive screws, earth screws, PCB guides on selected sizes, flange options for some sizes
- Certifications: BS EN 60529:1992, RoHS compliant
- Design: Fully customizable with machining, painting, component sourcing
Buy the ADC12 Series Enclosure: IP54 Dust and Water Resistant: 4830100
Order the ADC12 general purpose enclosure online today and benefit from robust dust and water protection with customizable sizes and finishes. Perfect for control panels, remote systems, and display boards, these enclosures are crafted from high-quality ADC12 aluminium, ensuring durability and compliance with IP54 standards. Designed for easy mounting with captive screws, earth screws, and PCB guides, they support a wide range of industrial applications. Choose from finishes like powder or nylon coating, and enjoy quick, secure online purchasing for efficient project setup.
Buy ADC12 Series Enclosure 4830100 now and experience unmatched reliability and performance for industrial and control applications.
Frequently Asked Questions
Where can I buy DELTRON ENCLOSURES 4830100?
You can click on the BUY or RFQ button to purchase 4830100 from an authorized DELTRON ENCLOSURES distributor.
How do I troubleshoot issues or seek technical support for part 4830100?
You can download the 4830100 datasheet or visit the DELTRON ENCLOSURES website for support.
Who is the manufacturer of 4830100?
DELTRON ENCLOSURES
