DIALIGHT 5219320F discrete LED
This low current 5mm diffused LED provides reliable illumination with a luminous intensity of at least 1.2 mcd at 2mA. It features an operating temperature range from -55°C to +100°C and is suitable for various display and indicator applications. Available in red, yellow, and green, these LEDs have a forward voltage between 1.8V and 1.9V at 2mA, with a viewing angle of 50°. Mounting is facilitated by a clip, and soldering must adhere to specific temperature standards for durability and performance. Ideal for electronic signaling and indicator systems, these LEDs ensure visibility and longevity in demanding conditions.
DIALIGHT 5219320F discrete LED Specifications:
- Color: Red, Yellow, Green
- Diameter: 5 mm
- Operating Current: 2 mA typical
- Peak Wavelength: Red 635 nm, Yellow 583 nm, Green 565 nm
- Luminous Intensity: Min 1.2 mcd at 2mA
- Forward Voltage: 1.8 V (Red), 1.9 V (Yellow), 1.8 V (Green)
- Peak Current: 500 mA
- Operating Temperature: -55°C to +100°C
- Storage Temperature: -55°C to +100°C
- Soldering Temperature: 260°C for 5 seconds, 1.6 mm from case
- Viewing Angle: 50°
- Mounting: Clip (part 515-0004)
- Power Dissipation: Red 27 mW, Yellow 36 mW, Green 24 mW
- Derating: 1 mA/°C from 92°C

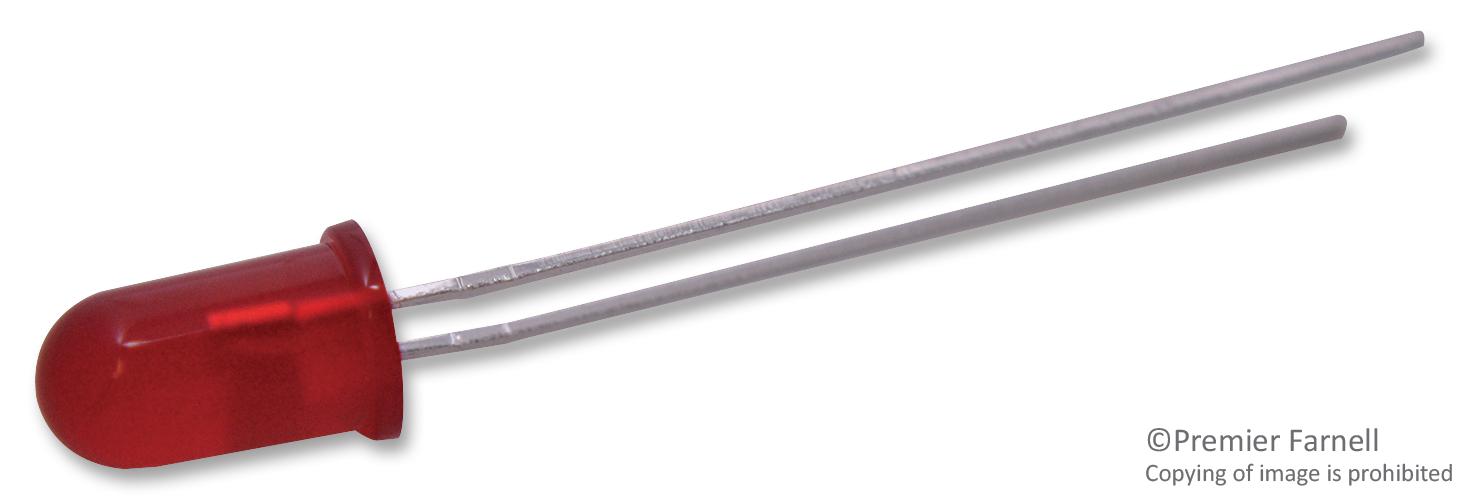

Buy the Buy Dialight LED Part Number 5219320F Online
Experience the reliability and brightness of Dialight's 5mm diffused LED, offering low current operation of 2mA and available in red, yellow, and green. These LEDs are perfect for indicators, displays, and signaling in industrial and consumer electronics. Designed to operate reliably from -55°C to +100°C, they feature a viewing angle of 50°, with optimal forward voltage and luminous intensity. Easy to install with mounting clips, these LEDs adhere to strict soldering standards, ensuring long-lasting durability and consistent performance in demanding environments. Elevate your electronic projects with these high-quality indicators today.
Get Dialight LED 5219320F today—designed for reliable indicator and signaling applications in electronic systems.
Frequently Asked Questions
Where can I buy DIALIGHT 5219320F?
You can click on the BUY or RFQ button to purchase 5219320F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5219320F?
You can download the 5219320F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5219320F?
DIALIGHT
