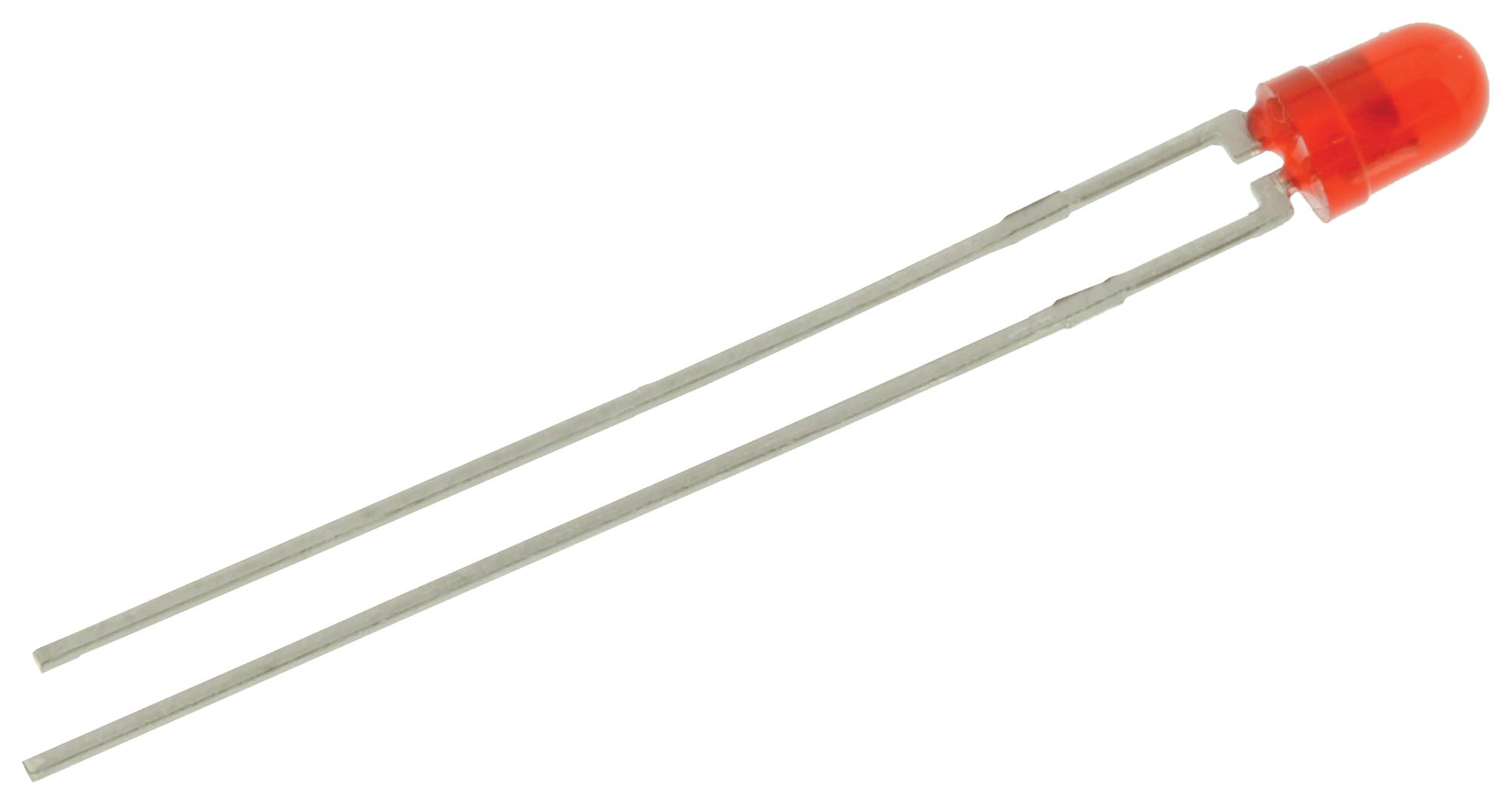

DIALIGHT 5219324F 3mm LED Indicator
The 521-9324F is a 3mm red LED lamp designed with a diffused lens for uniform light distribution and low current consumption of 7mA. It offers a luminous intensity typically of 1.6 med at 2mA and operates within a temperature range of -55°C to 100°C, making it suitable for LED indicator lighting and industrial applications. The LED features a forward voltage of approximately 1.7V and an off-axis viewing angle of 60°, ensuring visibility in various orientations. Its compact size and diffused lens make it ideal for various electronic and signaling applications where reliability and clear indication are necessary.
DIALIGHT 5219324F 3mm LED Indicator Specifications:
- Size: 3mm diameter
- Color: Red
- Lens Type: Diffused
- Power Dissipation: 20 mW
- Forward Current: 7 mA
- Peak Wavelength: 635 nm
- Viewing Angle: 60°
- Forward Voltage: 1.7 V
- Reverse Voltage: 5 V
- Operating Temperature: -55°C to +100°C
- Storage Temperature: -55°C to +100°C
- Soldering Temperature: 260°C for 5 seconds
- Solder Adherence: MIL-STD-202E, Method 208C
- Peak Current: 500 mA (pulse 10 µs)
- Derating Current: 7 mA/°C above 90°C
Buy the Dialight Series LED Indicator: 5219324F
Purchase the Dialight 5219324F 3mm LED indicator online today for exceptional visibility and reliable performance. Perfect for industrial, electronic, and signaling applications. This diffused lens LED operates efficiently with low current consumption, providing consistent luminous intensity at 2mA. It withstands extreme temperatures from -55°C to 100°C and features a compact design suitable for various mounting situations. Secure your supply of high-quality LED indicators online now and enjoy quick delivery and competitive pricing for your lighting and indicator needs.
Buy Dialight 5219324F now and experience reliable low-current LED indicator performance with a diffused lens ideal for industrial signaling.
Frequently Asked Questions
Where can I buy DIALIGHT 5219324F?
You can click on the BUY or RFQ button to purchase 5219324F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5219324F?
You can download the 5219324F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5219324F?
DIALIGHT
