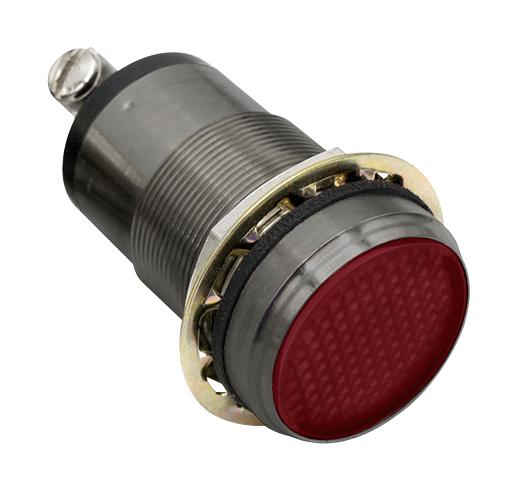

DIALIGHT 556150A204F LED Indicator Light
The 556 Series standard panel mount indicators by Dialight are highly durable LED lights designed for outdoor safety and industrial applications. Featuring constant intensity light output with voltages from 18 to 48V DC, these indicators are suitable for instrument panels, lane control, transportation, vending, and display lighting. Crafted with brass housings, transparent polycarbonate lenses, and corrosion-resistant nickel-plated terminals, they withstand harsh environments with IP66 and NEMA 4X ratings. The indicators are easy to install with a 1.0-inch mounting hole and operate efficiently in temperatures between -30°C and +85°C, ensuring reliable visibility in demanding conditions.
DIALIGHT 556150A204F LED Indicator Light Specifications:
- Voltage Options: 18-48VDC with internal resistor included
- Housing Material: Brass, Nickel Plated (White or Black)
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Mounting Hole Size: 1.0 inch (25.4 mm)
- Max Panel Thickness: Flat: 0.600 inch (15.24 mm), Dome: 0.187 inch (4.27 mm)
- Operating Temperature: -30°C to +85°C (-22°F to +185°F)
- Storage Temperature: -40°C to +100°C (-40°F to +212°F)
- Electrical Connection: 6-32 screw terminals
- Certifications: IP66, NEMA 4X, RoHS Compliant
- Mounting Torque: 40 in-lbs
Buy the Dialight 556150A204F – Reliable LED Signal for Industrial Applications
Enhance your safety and signaling with the durable Dialight LED Indicator Light from the 556 Series. Designed for outdoor and industrial use, these indicators feature constant intensity illumination, high resistance to dust and water with IP66 rating, and a robust brass housing in black or white nickel plating. Easy to install with a 1.0-inch mounting hole, operating efficiently within -30°C to +85°C, they are suitable for instrument panels, transportation, vending machines, and display lighting. Ensure visibility and reliability in demanding environments with Dialight's quality LED indicators.
Buy Dialight 556150A204F now and experience unmatched durability and reliable visual signaling in harsh outdoor environments.
Frequently Asked Questions
Where can I buy DIALIGHT 556150A204F?
You can click on the BUY or RFQ button to purchase 556150A204F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556150A204F?
You can download the 556150A204F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556150A204F?
DIALIGHT
