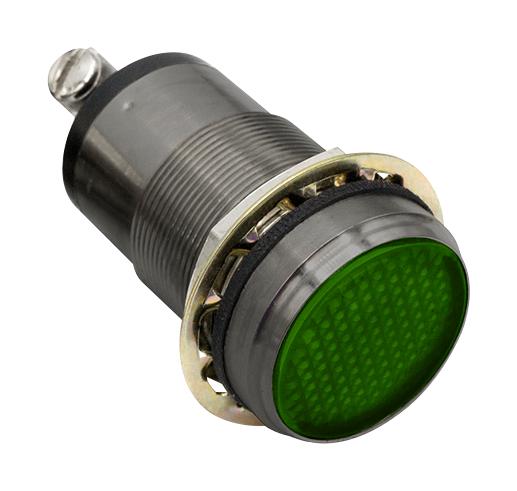

DIALIGHT 556160A204F LED Panel Indicator
The 556 Series LED Panel Mount Indicators are designed for durability and outdoor use, featuring constant intensity illumination with voltage options of 18-48 V DC, suitable for applications in instrument panels, safety, transportation, vending, and display lighting. Crafted with InGaN and AllnGaP technologies, these indicators are IP66 and NEMA 4X rated, resistant to rain, dust, and sunlight, and include brass housing, polycarbonate lenses, and brass terminals. They support panel thicknesses up to 0.600 inches and operate within temperatures from -30°C to +85°C, ensuring reliable performance in harsh environments.
DIALIGHT 556160A204F LED Panel Indicator Specifications:
- Mounting Hole Size: 1.0 inch (25.4 mm)
- Max Panel Thickness: Flat: 0.600 inch (15.24 mm), Dome: 0.187 inch (4.27 mm)
- Voltage Options: 18-48 VDC (internal resistor included)
- Operating Temp: -30°C to +85°C (-22°F to +185°F)
- Storage Temp: -40°C to +100°C (-40°F to +212°F)
- Electrical Connection: 6-32 screw terminals
- Housing: Brass—White or Black Nickel Plated
- Lens Material: Transparent Polycarbonate (UL 94-0)
- Mounting Torque: 40 in-lbs
- Certifications: IP66, NEMA 4X, RoHS Compliant
- Terminals: Brass — Hot solder dipped per Mil-F-14072D, M258, Type II
- Lock Washer: Phosphor Bronze — White or Black Nickel Plated
- Nut: Brass—White or Black Nickel Plated
Buy the Dialight Series 556 LED Panel Mount Indicator: 556160A204F
Purchase the Dialight 556160A204F LED panel indicator online today and enjoy reliable, long-lasting illumination for your industrial and outdoor applications. With integrated internal resistors, multiple voltage options, and certifications like IP66 and NEMA 4X, this indicator ensures durability and performance in harsh environments. Its brass housing, polycarbonate lens, and easy-to-install design make it ideal for safety, transportation, vending, and display lighting. Order now for fast delivery and elevate your operational efficiency with this high-quality LED indicator.
Buy Dialight 556160A204F now and experience unmatched durability and clear visibility in tough environments.
Frequently Asked Questions
Where can I buy DIALIGHT 556160A204F?
You can click on the BUY or RFQ button to purchase 556160A204F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 556160A204F?
You can download the 556160A204F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 556160A204F?
DIALIGHT
