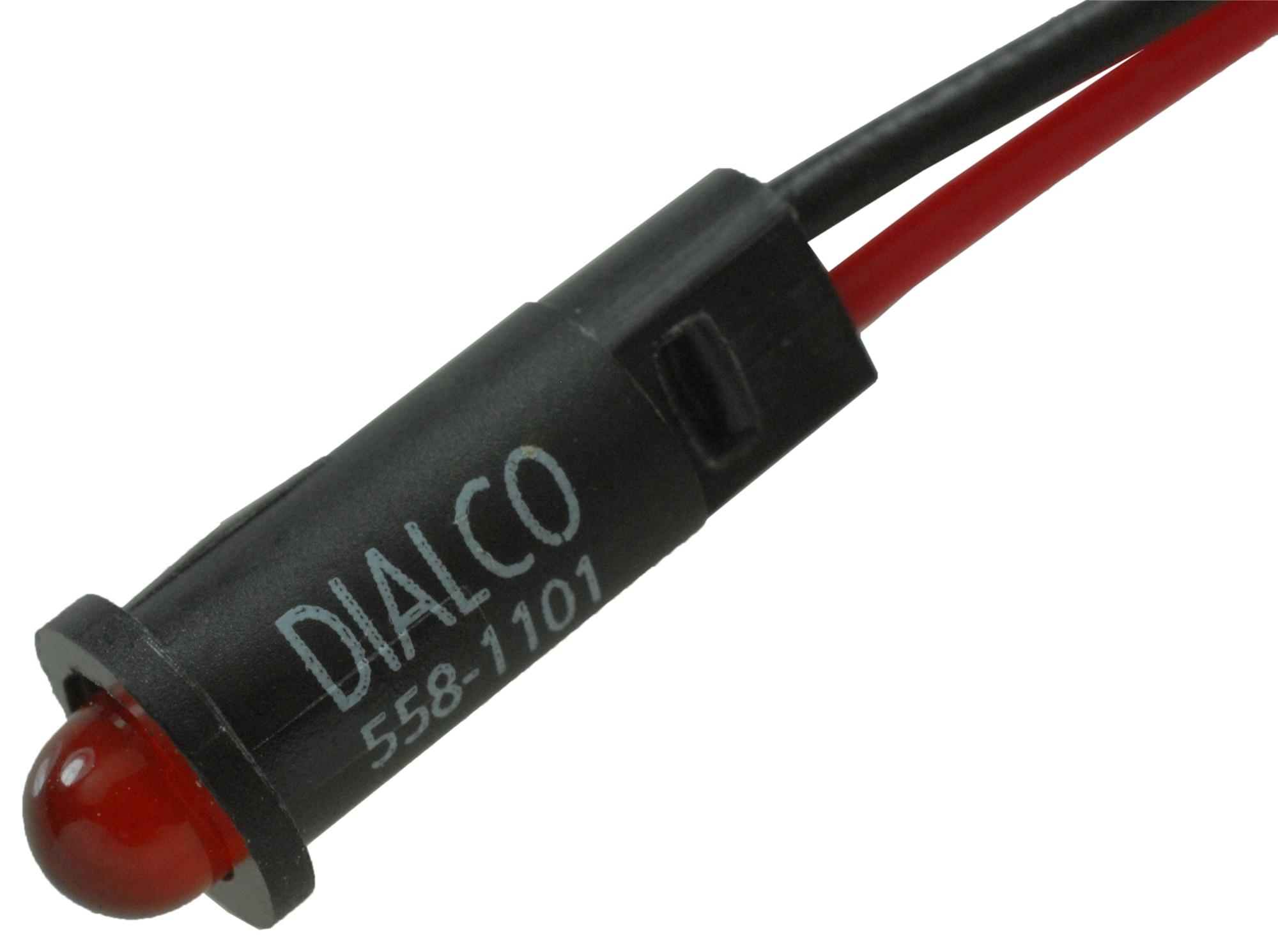

DIALIGHT 5581101007F LED Panel Indicator
This high-efficiency, diffused LED panel mount indicator is designed for quick and secure installation in panels from 0.031 to 0.062 inches thick using snap-in mounting. It offers various color options including red, green, yellow, orange, and amber, with a lifespan of 100,000 hours and UL94V-0 housing. Suitable for panel mounting, it features straight terminals for wire-wrapping, with options for wire leads of 6 inches or 14 inches. Its reliable operation and uniform illumination make it ideal for indicator and signal applications in industrial and electronic panels.
DIALIGHT 5581101007F LED Panel Indicator Specifications:
- Housing Material: UL94V-0 Flame Retardant Plastic
- Mounting Hole Diameter: 3.94mm to 4.01mm
- Panel Thickness Compatibility: 0.031 to 0.062 inches
- LED Color Options: Red, Green, Yellow, Orange, Amber
- Wavelength Range: 563nm to 660nm
- Forward Voltage: 1.6V to 3V depending on color
- Operating Current: 2mA to 20mA
- Lumen Output: Varies by color and model
- Lifespan: 100,000 hours
- Housing Color: Black
- Termination Options: Straight terminals, 6-inch or 14-inch wire leads
- Compliance: UL94V-0
- Viewing Angle: 45°
- Maximum Storage Temp: -55°C to +100°C
- Maximum Operating Temp: -55°C to +85°C
Buy the Dialight Series 558 LED Panel Indicator: 5581101007F
Order the Dialight LED Panel Indicator 5581101007F online today. Designed for fast snap-in installation in panels up to 0.062 inches thick, it features high reliability with a 100,000-hour lifespan. Available in multiple vibrant colors including red, green, yellow, orange, and amber, ensuring excellent visibility and contrast. Its straight terminals facilitate easy wiring, making it suitable for industrial control panels, electronic indicators, and signaling applications. Trust Dialight’s quality for durable, efficient, and uniform illumination in your projects.
Get Dialight 5581101007F today—built for precision, easy panel mounting, and long-lasting LED illumination.
