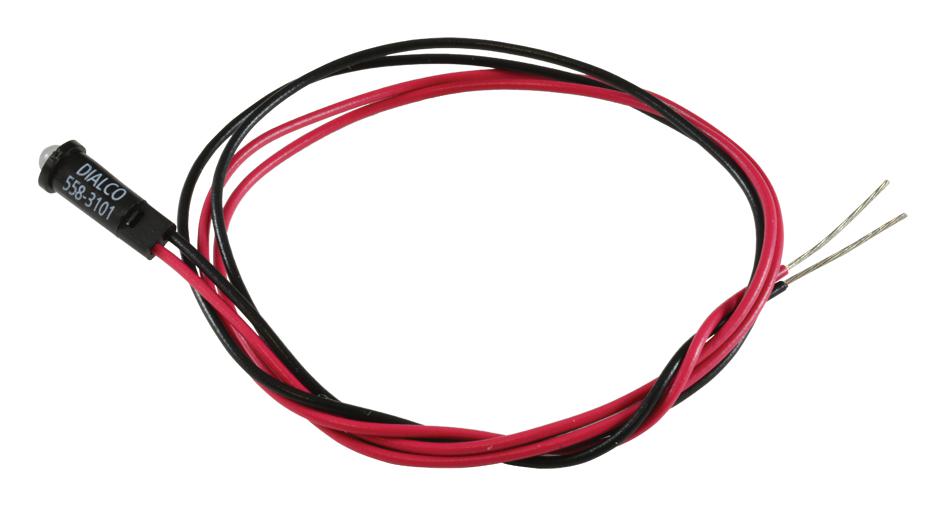

DIALIGHT 5583101007F LED Panel Indicator
The 558-3101-007F is a high-brightness red/green bi-color snap-in LED indicator with a black housing that enhances contrast. It features diverse LED technologies including AlInGaP and InGaN, ensuring energy-efficient operation with up to 90% less power consumption compared to incandescent options. Designed for easy panel mounting without extra hardware, it offers long life, resistance to shock and vibration, and UL94V-0 flammability compliance. Suitable for industrial signaling, the indicator operates reliably across temperatures from -55°C to 100°C, making it versatile for demanding environments.
DIALIGHT 5583101007F LED Panel Indicator Specifications:
- Housing Material: Black UL94V-0 plastic
- LED Technologies: AlInGaP, InGaN
- Color Options: Red/Green bi-color
- Wavelength: 635/565 nm and 660/565 nm
- Operating Voltage: 2.6/2.6 V and 1.8/2.1 V
- Maximum Forward Current: 50 mA and 100 mA
- Viewing Angle: 40°
- Power Consumption: Up to 90% less than incandescent indicators
- Lifespan: Approximately 100,000 hours
- Operating Temperature Range: -55°C to 100°C
- Flammability Standard: UL94V-0
- Mounting Style: Snap-in panel mount
- Mounting Hole Diameter: 3.18 mm
- Connection Termination Options: Straight terminals or 14-inch wire leads
- Shock and Vibration Resistance: Yes
- Compliance: UL, RoHS
Buy the Buy Dialight LED Panel Mount Indicator Part Number 5583101007 Online
Purchase the Dialight LED Panel Mount Indicator 5583101007 today to enhance your industrial control panels. This high-brightness, bi-color LED offers quick snap-in mounting, long lifespan, and exceptional resistance to shock and vibration. With UL94V-0 flammability standard compliance and operating temperatures from -55°C to 100°C, it ensures reliable performance in demanding environments. Energy-efficient and easy to install, this indicator provides clear visual signals for industrial and signaling applications, making it an essential component for modern control systems.
Get Dialight LED Panel Mount Indicator 5583101007 today—designed for long-lasting durability and clear signaling in industrial environments.
Frequently Asked Questions
Where can I buy DIALIGHT 5583101007F?
You can click on the BUY or RFQ button to purchase 5583101007F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 5583101007F?
You can download the 5583101007F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 5583101007F?
DIALIGHT
