DIALIGHT 5690102222F Industrial LED Indicator

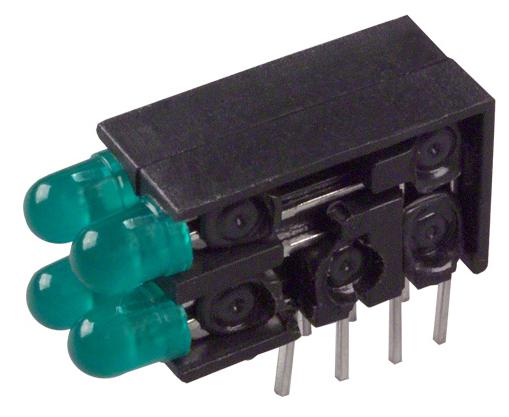

This high-density dual bi-level LED circuit board indicator features three millimeter diffused, tinted LEDs with multiple colors including red, green, yellow, orange, and blue. Designed for industrial applications, it provides excellent visibility with high contrast and a 60° or 70° viewing angle. The housing is UL 94 V-0 rated with PCB stand-offs for easy cleaning. Suitable for mounting on horizontal LED arrays with center-lines of 3.35mm, these durable, solderable LEDs meet IEC 825-1 safety standards and are rated for operating temperatures from -40°C to +100°C, ensuring reliable long-term performance.
DIALIGHT 5690102222F Industrial LED Indicator Specifications:
- Size: 3mm diameter
- Color options: Red, Green, Yellow, Orange, Blue
- Wavelength: 428-635 nm depending on color
- Luminous Intensity: 6.3 to 74 mcd with typical 12 to 12.6 mcd at 10-20mA
- Forward Voltage: 2.1 to 3.5 V at 10-20mA
- Operating Temperature: -40°C to +100°C
- Storage Temperature: -40°C to +100°C
- Power Dissipation: 60 to 135 mW depending on model
- Viewing Angle: 60° to 70°
- Soldering Temperature: 260°C for 5 seconds
- Housing Material: PBT with UL 94 V-0 rating
- Stand-offs: PCB mounting for cleaning
- Compliance: IEC 825-1 for safety
- Peak Wavelength: 428-635 nm depending on color
Buy the Dialight 569-0102-222 U+2013 Reliable Green LED Indicator for Industrial Applications
Purchase Dialight industrial LED indicators online today to enhance your control panels and machine interfaces. Our high-density, multicolor LEDs are designed for reliability, long-term operation, and excellent visibility. Ideal for various industrial applications, these LEDs feature diffused lenses, UL-rated housing, and a wide operating temperature range. Easy to mount, solder, and maintain, they ensure your equipment remains visible, safe, and compliant with safety standards. Order now and benefit from fast delivery and expert support for your automation needs.
Buy Dialight 569-0102-222 now and experience unmatched reliability and performance with high contrast, durable LED indicators perfect for industrial environments.
