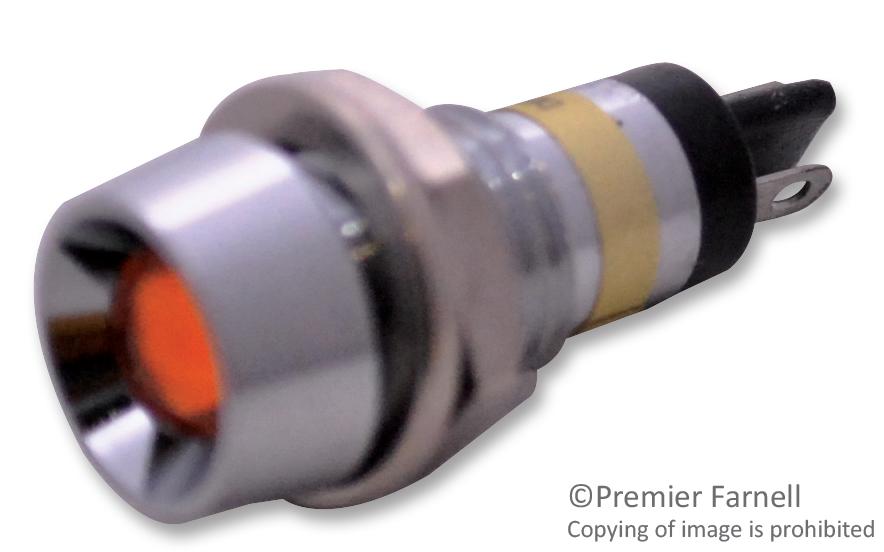

DIALIGHT 6072312110F LED Panel Indicator
The LED Panel Mount Indicators from the LIQUO 607 Series are designed for easy installation through a 7.2mm mounting hole and offer optional watertight capability with front seals meeting NEMA 4X/IP66 standards. These indicators feature a durable chrome-plated brass housing for protruding and recessed positions, while the internal position uses polycarbonate matching the LED color. Voltage options include 2 VDC with a current limiting resistor or 6, 12, and 24 VDC without resistors. Operating temperatures range from -30°C to +85°C, ensuring reliable performance in various environments. Their robust construction makes them ideal for industrial automation, control panels, and equipment requiring clear visual status indication with water resistance.
DIALIGHT 6072312110F LED Panel Indicator Specifications:
- Mounting Hole Diameter: 7.2 mm (0.283 inches)
- Housing Material: Chrome plated brass (protruding & recessed), Polycarbonate (internal)
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Voltage Options: 2 VDC (with resistor), 6, 12, 24 VDC (no resistor required)
- Electrical Connection: Solder terminals
- Watertight Seal: Meets NEMA 4X/IP66 standards
- Maximum Panel Thickness: Refer to specifications sheet
- Mounting Torque: 0.217-0.362 lbs/ft, 3-5 Kg/cm
- LED Colors and Voltages: Red, Green, Yellow; 120F, 110F, internal versions, recessed and internal variants
Buy the LIQUO Series 607 LED Panel Indicators: 6072312110F
Order the LIQUO 6072312110F LED Panel Indicator online today to secure a reliable, durable, and water-resistant indicator for your industrial control and automation applications. Designed for DIN panel mounting with optional watertight seals, this indicator features multiple voltage options, robust chrome-plated brass housing, and internal polycarbonate matching LED colors. Its versatile design suits environments requiring high visibility and robust performance in challenging conditions. Purchase now to ensure precise, long-lasting indicator illumination that enhances operational efficiency and safety in your systems.
Get LIQUO 6072312110F today—built for precision and long-lasting durability in industrial control panels and equipment.
Frequently Asked Questions
Where can I buy DIALIGHT 6072312110F?
You can click on the BUY or RFQ button to purchase 6072312110F from an authorized DIALIGHT distributor.
How do I troubleshoot issues or seek technical support for part 6072312110F?
You can download the 6072312110F datasheet or visit the DIALIGHT website for support.
Who is the manufacturer of 6072312110F?
DIALIGHT
